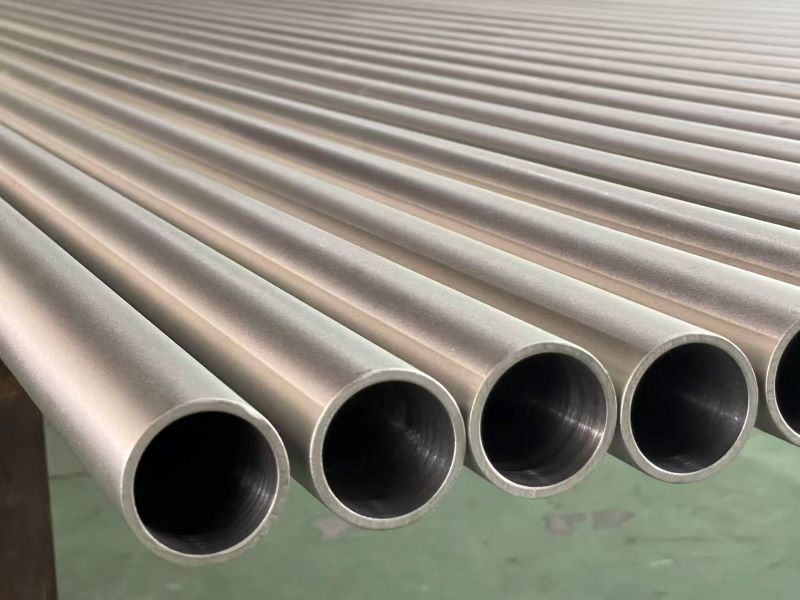

TP317LMn SEAMLESS PIPE

TP317LMN seamless pipe refers to a seamless pipe made from TP317LMN stainless steel, typically manufactured to the ASTM A312 standard.
This material is an austenitic stainless steel known for its enhanced corrosion resistance and strength, making it suitable for severe service conditions.

① STANDARD: ASTM A213/ ASTM A312/ ASTM A249/ ASTM A269/ GOST 9940 /GOST 9941...
② OD RANGE : 6-1016 MM
③ THICKNESS RANGE: 1-65 MM

Quantity:
Availability:





Inquire Add to Basket

Chemical Composition

Mechanical Properties

Applications

Service

Material Summary

TTP317LMN seamless pipe/1.4439 SEAMLESS tube/TP317LMN SEAMLESS/EN10216-5 1.4439 SEAMLESS PIPE tube is an austenitic stainless steel known for its enhanced corrosion resistance and strength, making it suitable for severe service conditions.

Chemical Composition

Grade	C	Si	Mn	P	S	Cr	Mo	Ni	Cu	N
TP317Lmn	≤0.03	≤1.00	≤2.00	≤0.04	≤0.03	17.00-20.00	4.00-5.00	13.50-17.50	≤0.75	0.10-0.20

Mechanical Properties

Graded	Tensile Strength ksi (Mpa)	Yield Strength ksi (Mpa)	Elongation -% in 50 mm
TP317Lmn	≥80(550)	≥35(240)	≥35

Applications

317LMN stainless steel pipes, also known as UNS S31726, have several applications across industries due to their unique properties:

Chemical Processing Plants:

317LMN pipes are commonly used in chemical processing plants for conveying corrosive chemicals, acids, and alkalis.
Their resistance to corrosion ensures safe material transfer.

Paper Mills:

In the paper and pulp industry, 317LMN stainless steel pipes find use.
They withstand harsh conditions in paper production processes.

Refineries:

Refineries utilize 317LMN pipes for various applications, including handling aggressive media.
Their durability and resistance to environmental elements make them valuable.

Power Plant Scrubber Systems:

317LMN pipes are essential components in power plant scrubber systems.
They resist corrosion from flue gases and other pollutants.

Oil Production Equipment:

In the oil industry, 317LMN stainless steel pipes are used for pipelines, wellheads, and other equipment.
Their strength and corrosion resistance withstand harsh oilfield conditions.

Remember that 317LMN stainless steel is a great choice when your application calls for strong resistance against environmental elements such as high temperatures or corrosive materials!

Service

End of Pipe and Tube

Ply Wooden Boxes
PE Fabric Bundles
Standard seaworthy export packing
Plastic Bags, or as required

Marking

Supplier / Manufacturer Name or Custom Logo - on request
Specification
Material Grade
Nominal Size
Schedule or Wall Thickness
Method of Manufacturing (Seamless or Welded)
Heat Number

Marked Pipe Sample: XTD ASTM A312 TP317Lmn SEAMLESS 42.2x 3.56*6000MM HEAT NO. 2023121205A15

Packing

Ply Wooden Boxes
PE Fabric Bundles
Standard seaworthy export packing
Plastic Bags, or as required

Delivery Condition

Pickled&Annealed, Polished, Bright Annealed.
All tubes shall be supplied as per applicable ASTM B163 /B426
Mill test certificates will be issued
We can provide 3.2 Certification according to the needs of you

Standard

ASTM A312: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

Material Summary

317LMN stainless steel provides high corrosion resistance in acidic chloride-containing environments when compared to 316L and 317L stainless steel. It is a higher molybdenum austenitic stainless steel alloyed with nitrogen the higher molybdenum provides the alloy enhanced corrosion resistance, mainly in acidic chloride containing service.
