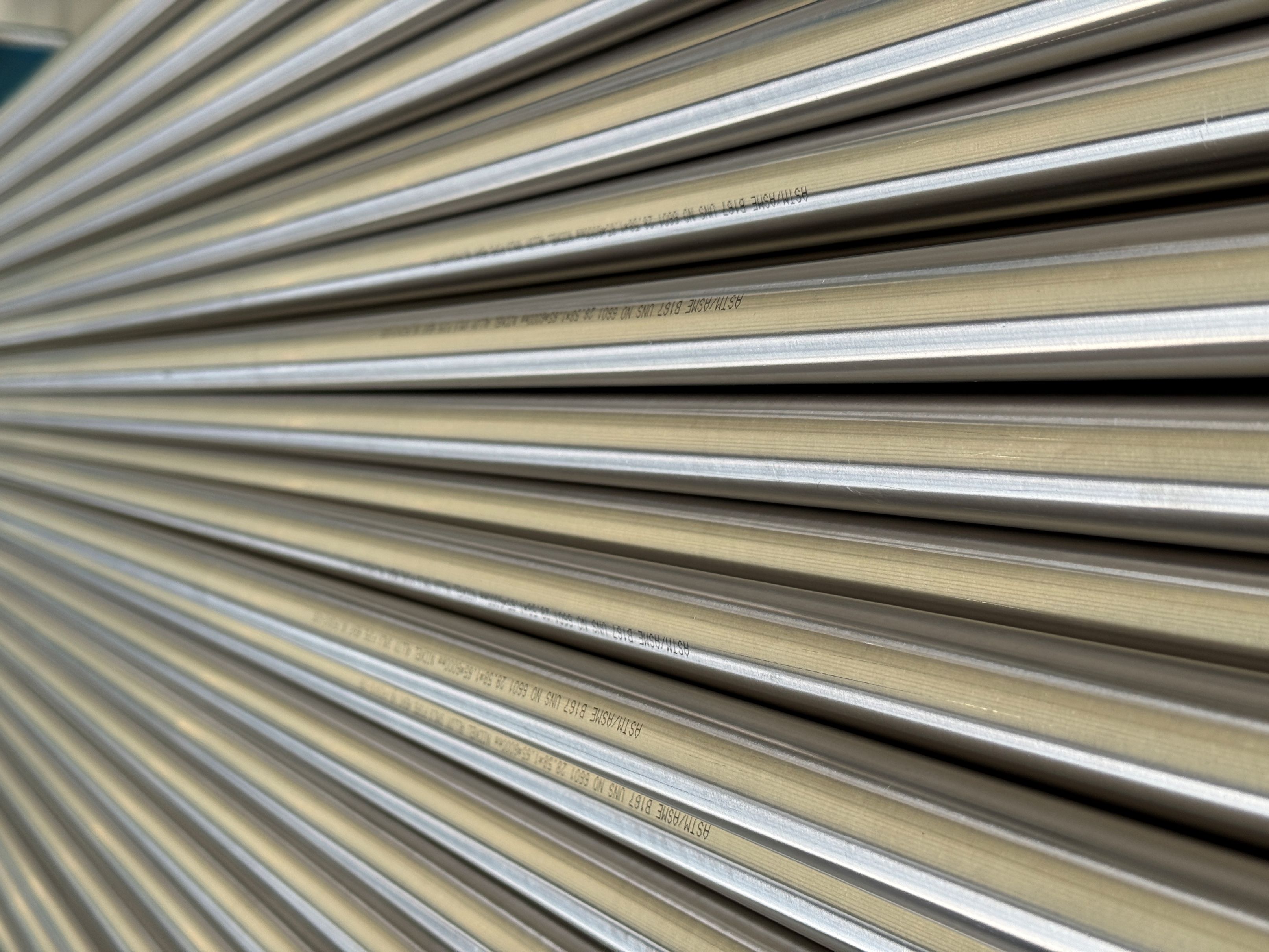

Overview of Seamless Inconel 601 Tube
Inconel 601 Seamless Tube is made from a high-performance nickel-chromium-iron alloy, designed to withstand extreme conditions such as high-temperature oxidizing, carburizing, and sulfur environments. Known for its excellent oxidation resistance, high strength, and ability to maintain mechanical properties under cyclic heating, Inconel 601 is a popular choice in demanding industries like aerospace, power generation, and chemical processing. Seamless tubes, in particular, offer superior strength and durability compared to welded tubes, with no weld seams, resulting in enhanced corrosion resistance and structural integrity. Inconel 601 seamless tube conform to key industry standards like ASTM B167, ASME SB167, and UNS N06601, making them an ideal engineering material for applications requiring high performance and reliability.
N06601’s unique microstructure forms a dense Cr2O3 scale that adheres tightly to the matrix, preventing oxide spalling and protecting against gas-phase corrosion even at extreme temperatures.
Chemical Composition
Grade | Ni | Cu | Fe | Mn | C | Si | S | Cr | Al |
UNS N06601 | 58.0-63.0 | ≤1.0 | Remainder1 | ≤1.50 | ≤0.1 | ≤0.5 | ≤0.015 | 21-25 | 1.0-1.7 |
Features
Superior High-Temperature Oxidation Resistance: Withstands continuous service at 1200°C and intermittent use up to 1350°C, resisting scale formation in air, nitrogen, and carbon dioxide atmospheres better than most stainless steels.
Resistance to Carburization & Nitridation: The high chromium and aluminum content creates a barrier against intergranular penetration by carbon and nitrogen, making it ideal for heat treatment furnaces.
Good Mechanical Strength: Maintains creep rupture strength up to 1093°C and exhibits excellent fatigue resistance in thermal cycling conditions, such as those found in industrial furnaces.
Moderate Corrosion Resistance: Resistant to nitric acid, organic acids, and molten salts, though it is not optimized for highly reducing or chloride-rich environments (use Inconel 625 or Hastelloy C-22 instead).
Mechanical Properties
Grade | Tensile Strength ksi(Mpa) | Yield Strength ksi(Mpa) | Elongation(%) |
N06601 TUBE | ≥80(552) | ≥30(207) | ≥30 |
N06601 PIPE | ≥550 | ≥205 | ≥30 |
Application of Seamless Inconel 601 Tube
Heat Treatment Equipment: Used in furnace rollers, retorts, and radiant tubes for carburizing furnaces, sintering ovens, and heat treaters operating at 900-1200°C.
Petrochemical Heating Systems: Employed in ethylene furnace coils, reformer tubes, and thermal cracking units, resisting coking and scale buildup in high-temperature hydrocarbon streams.
Power Generation: Suitable for gas turbine exhaust systems and waste-to-energy incinerator tubes, enduring corrosive flue gases and thermal fatigue.
Ceramic & Glass Industries: Used in kiln supports, glass melting electrodes, and heat shields, resisting alkali vapor corrosion and thermal shock.
