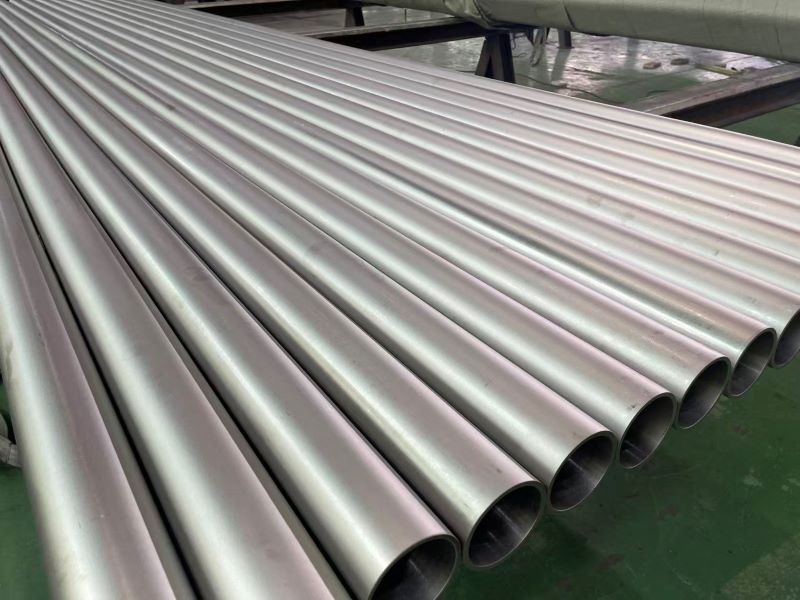

UNS N07718 SEAMLESS PIPE

UNS N07718 Seamless Pipe refers to a type of seamless pipe made from Inconel 718, which is a high-strength, corrosion-resistant superalloy composed primarily of nickel (about 50-55%) and other elements such as chromium, iron, molybdenum, niobium, and titanium. The alloy is well-known for its ability to perform in high-temperature and highly stressed environments, making it suitable for various demanding applications, especially in aerospace, power generation, and chemical processing industries.

① STANDARD: ASTM B161/ ASTM B163/ ASTM B167/ ASTM B444/ ASTM B622 ...
② OD RANGE : 6-457 MM
③ THICKNESS RANGE: 1-45 MM

Quantity:
Availability:





Inquire Add to Basket

Material Summary

Chemical Composition

Mechanical Properties

Applications

Service

UNS N07718 Seamless Pipe/ 2.4668 SEAMLESS PIPE/INCONEL SEAMLESS PIPE N07718/NICKEL ALLOY SEAMLESS tube N07718/NICKEL ALLOY SEAMLESS tube N07718 refers to a type of seamless pipe made from Inconel 718, which is a high-strength, corrosion-resistant superalloy composed primarily of nickel (about 50-55%) and other elements such as chromium, iron, molybdenum, niobium, and titanium. The alloy is well-known for its ability to perform in high-temperature and highly stressed environments, making it suitable for various demanding applications, especially in aerospace, power generation, and chemical processing industries.

We manufacture Inconel 718 seamless pipe & tube according to ASTM B983. We have complete cold rolling, cold drawing, annealing, pickling and other process equipment. Any size and performance needs are guaranteed. We will carry out solution treatment and aging treatment on the material according to the standard requirements, which will ensure the best high temperature strength of the material.

Chemical Composition

Grade

C

Mn

Si

P

S

Cr

Cb

Mo

Co

Ti

Al

B

Fe

Ni

Cu

UNS N07718

≤0.08

≤0.35

≤0.015

≤17-21

≤1.0

2.8-3.30

4.7-5.5

0.65-1.15

0.20-0.80

≤0.006

Rem

50-55

≤0.3

Mechanical Properties

Grade	Condition	Tensile Strength ksi(MPa)	Yield Strength ksi(MPa)	Elongation (%)	Hardness
UNS N07718	Solution Annealed+ Prec hard	≥150(1034)	≥125(862)	≥20	≤40

Applications

Due to its high-temperature strength up to 700 °C (1300 °F), excellent corrosion resistance and ease of fabrication ALLOY718 finds applications in many fields.

· Gas turbine components

· Cryogenic storage tanks

· Jet engines

· Liquid fueled rocket motors and components

· Fasteners and instrumentation parts

· Nuclear fuel element spacers

· Hot extrusion tooling

· Down hole shafting and strength bolting
