In the vast realm of metal alloys, stainless steel has stood the test of time as one of the most commonly used materials due to its combination of strength, corrosion resistance, and aesthetic appeal. It is used extensively across industries ranging from construction and manufacturing to medical and household applications. However, as engineering demands have evolved, so has the need for materials with enhanced performance under more extreme conditions. This has led to the increasing popularity of duplex stainless steel—a high-performance alloy that blends the benefits of ferritic and austenitic structures.

Understanding the key differences between duplex steel and conventional stainless steel is not just an academic exercise—it has real-world implications in selecting the right material for the right job. The choice between these two steel types affects performance, longevity, and cost-efficiency, especially in critical sectors such as oil & gas, marine, and chemical processing.


Key Differences Between Duplex Steel and Stainless Steel

1. Microstructure: Austenitic vs. Austenitic-Ferritic

The defining feature of any steel type lies in its microstructure—the arrangement of its internal crystals.

Stainless steel (especially grades like 304 and 316) belongs to the austenitic family, characterized by a face-centered cubic (FCC) crystal structure. This structure provides superior formability, weldability, and non-magnetic properties, making it suitable for applications where appearance and hygiene are crucial. However, this comes at the cost of relatively low strength and vulnerability to stress corrosion cracking under certain conditions.

Duplex stainless steel, such as 2205 or 2507, possesses a dual-phase microstructure, typically consisting of approximately equal parts of austenite and ferrite (body-centered cubic structure). This dual-phase arrangement provides the toughness and corrosion resistance of austenitic steel combined with the strength and stress resistance of ferritic steel. This makes duplex steel highly effective in environments where both mechanical performance and corrosion resistance are essential.

In addition, duplex grades are less prone to grain boundary precipitation, which can otherwise reduce corrosion resistance during welding—a critical advantage in fabricating heavy industrial components.


2. Mechanical Strength: Duplex Steel's Higher Yield and Tensile Strength

One of the most critical factors when selecting a material is its mechanical strength, particularly yield strength—the stress at which a material begins to deform plastically.

Standard austenitic stainless steels such as 304 and 316 generally have yield strengths in the range of 200–300 MPa, with tensile strengths around 500–600 MPa.

In contrast, duplex stainless steels like 2205 offer yield strengths of at least 450–550 MPa, with tensile strengths exceeding 700 MPa. This more than double the yield strength allows for the use of thinner wall thicknesses without compromising structural integrity, reducing both weight and cost in heavy-duty applications.

This strength advantage is particularly beneficial in:

  • Pressure vessels

  • Structural beams

  • Offshore platforms

  • Large-diameter pipelines

Moreover, duplex steels maintain excellent impact toughness, even at sub-zero temperatures—a property that extends their usefulness in arctic or cryogenic applications.


3. Corrosion Resistance: General vs. Localized Performance

While both steel types are designed to resist corrosion, the nature and extent of that resistance vary based on their composition and structure.

Austenitic stainless steels, especially 316, are widely used for their general corrosion resistance, thanks to a higher nickel and molybdenum content. They resist oxidation in moist air, water, and mild chemical environments, making them ideal for hygienic and aesthetic applications.

Duplex stainless steels, however, are engineered to resist aggressive forms of localized corrosion, including:

  • Pitting corrosion in chloride-rich environments

  • Crevice corrosion where joints or bolts trap corrosive agents

  • Chloride-induced stress corrosion cracking (SCC), which is a major risk in coastal, marine, and chemical processing plants

For instance, 2205 duplex steel has a PREN (Pitting Resistance Equivalent Number) of ~35, compared to PREN ~25 for 316 stainless steel. Super duplex steels like 2507 push that number even higher, making them suitable for the most corrosive conditions imaginable, such as brine tanks and subsea equipment.


4. Cost Efficiency Over the Product Lifecycle

When it comes to initial costs, duplex stainless steel is typically more expensive than standard grades like 304. The cost is primarily due to its more complex alloying elements, including higher chromium, nitrogen, and molybdenum content.

However, over the lifespan of a project, duplex stainless steel can offer significant cost savings, particularly in high-performance or corrosion-prone environments. The long-term financial benefits include:

  • Lower maintenance costs due to enhanced durability

  • Longer service life, reducing the need for replacements

  • Reduced weight of materials, lowering shipping and fabrication expenses

  • Improved structural performance, minimizing over-engineering

When factoring in total cost of ownership (TCO), duplex stainless steel often comes out ahead, especially in environments where performance, longevity, and safety are mission-critical.

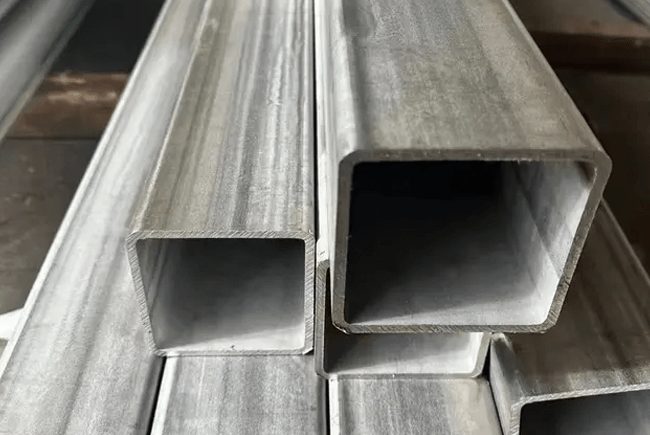

Duplex Steel

Application Comparison: Industry-Specific Advantages

Duplex Steel: A Powerhouse in Chemical and Petrochemical Industries

Due to its high strength, outstanding corrosion resistance, and cost effectiveness over time, duplex stainless steel is extensively used in heavy industrial sectors.

Key applications include:

  • Chemical storage tanks and pressure vessels

  • Desalination plants

  • Heat exchangers and evaporators

  • Offshore oil and gas rigs

  • Subsea pipelines and risers

  • Power plant condensers

In these industries, equipment is often exposed to acidic media, chlorides, and high pressures, making duplex steel the preferred material. The balance of mechanical and chemical resistance makes it not just a suitable choice, but often the only viable one.


Stainless Steel: Reliable Workhorse in Food, Medical, and Residential Use

Standard stainless steel remains a top material for clean, low-corrosive, and aesthetic-focused environments. Its ease of fabrication, sanitary properties, and smooth finish make it irreplaceable in many sectors.

Common uses include:

  • Food processing and kitchen equipment: mixers, ovens, countertops

    Residential water piping and fixtures

    Elevator panels and railings

    Pharmaceutical clean rooms and hospital equipment

  • Consumer appliances: washing machines, refrigerators, dishwashers

    Architectural and decorative structures

Austenitic stainless steels are also valued for being non-magnetic and easily weldable, which makes them practical for complex assemblies and parts requiring high surface quality.

In environments where visual appeal, hygiene, and moderate corrosion resistance are more important than extreme mechanical strength, stainless steel remains the ideal and most economical solution.


Conclusion

Both duplex steel and stainless steel serve critical roles across a wide spectrum of industries. The choice between them depends on a deep understanding of their respective microstructures, mechanical properties, and corrosion resistance profiles.

  • Stainless steel, especially austenitic grades like 304 and 316, is the go-to material for general corrosion resistance, ease of use, and appearance-focused applications.

  • Duplex stainless steel shines in high-performance applications, offering twice the strength, superior stress corrosion resistance, and significant long-term cost savings.

Selecting the right material is not just about initial expense—it's about matching the material's capabilities to the environment and application. A well-informed choice enhances performance, ensures safety, and reduces the lifetime cost of any project.
