Author: Site Editor Publish Time: 2025-07-07 Origin: Site
Hastelloy metal stands out in industrial applications that demand strong corrosion resistance, especially in chemical processing reactors and oil and gas equipment. Inconel works best in high temperature environments, such as aerospace engines and gas turbines, because it resists oxidation and maintains strength under extreme heat. The main distinction in the hastelloy vs inconel debate centers on corrosion resistance for hastelloy and high temperature performance for inconel. The following table provides a quick comparison of these high-performance alloys. Selecting the right material depends on matching hastelloy vs inconel properties to the specific conditions of each project.
Hastelloy excels in resisting corrosion, especially in strong acids and harsh chemical environments.
Inconel performs best at very high temperatures, maintaining strength and resisting oxidation near 1,000°C.
Hastelloy is easier to weld and machine than Inconel, which requires special tools due to work hardening.
Choosing between Hastelloy and Inconel depends on the environment’s temperature, chemical exposure, and mechanical stress.
Hastelloy is ideal for chemical processing, marine, and pollution control where corrosion is a major concern.
Inconel suits aerospace, power generation, and oil and gas industries needing high temperature and oxidation resistance.
Both alloys offer strong mechanical properties, but Inconel generally has higher tensile and yield strength.
Considering total lifecycle costs, including maintenance and downtime, helps select the most cost-effective alloy.
| Property / Metric | Hastelloy C-276 | Inconel 625 |
|---|---|---|
| Tensile Strength (MPa) | 690–785 | 827–965 |
| Yield Strength (MPa) | 283–355 | 414–517 |
| Maximum Service Temperature (°C) | 427 | 982 |
| Density (g/cm³) | 8.89 | 8.44 |
| Melting Range (°C) | 1323–1371 | 1290–1350 |
| Molybdenum Content (%) | ~16 | ~9 |
| Corrosion Rate in HCl (mm/y) | Lower at high HCl/temp | Higher at high HCl/temp |
| Corrosion Resistance | Excellent in acids and chlorides | Excellent in oxidizing environments |
| Machinability | Challenging, but easier than Inconel | Very difficult, requires special tools |
| Cost Range (2024) | $20–50 per pound | $25–60 per pound |
| Typical Uses | Chemical processing, marine, reactors | Aerospace, turbines, nuclear reactors |
Note: Industry benchmarks confirm that these values reflect real-world performance and cost. For example, a pharmaceutical company reduced downtime by 300% after switching from Inconel to Hastelloy in acid reactors. Aerospace manufacturers also cut machining costs by using pre-machined Inconel blanks.
The hastelloy vs inconel comparison shows clear differences in both performance and application. Hastelloy metal provides outstanding corrosion resistance, especially in environments with strong acids like sulfuric or hydrochloric acid. This makes hastelloy the preferred choice for chemical processing plants, marine equipment, and any setting where acid exposure is common. Its higher molybdenum content gives it an edge in resisting stress-corrosion cracking and pitting.
Inconel, on the other hand, excels in high temperature environments. It maintains its strength and resists oxidation even when exposed to temperatures close to 1,000°C. This property makes inconel ideal for aerospace engines, gas turbines, and nuclear reactors. Inconel alloys also retain about 90% of their tensile strength at elevated temperatures, which is critical for safety and performance in demanding applications.
Machinability also differs between the two. Hastelloy is challenging to machine, but it is still about 30% easier to work with than Inconel. Inconel work hardens quickly and forms carbides, so it requires special tools and slow feed rates. This difference can affect manufacturing costs and lead times.
Cost is another important factor in the hastelloy vs inconel decision. Both alloys are premium materials, but hastelloy generally costs slightly less than Inconel 718. However, the total cost of ownership depends on the specific environment and maintenance needs. For example, using hastelloy in a highly acidic environment can reduce downtime and replacement costs, while inconel’s durability at high temperature can extend equipment life in turbines or reactors.
Hastelloy c-276 belongs to the family of nickel-based alloys known for their outstanding corrosion resistance. This alloy contains a high percentage of nickel, along with significant amounts of molybdenum, chromium, and tungsten. These elements work together to protect equipment in harsh chemical environments. The typical composition of hastelloy c-276 includes:
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 57–65 |
| Chromium (Cr) | 14.5–16.5 |
| Molybdenum (Mo) | 15–17 |
| Tungsten (W) | 3–4.5 |
| Iron (Fe) | 4–7 |
| Carbon (C) | 0.01 max |
| Silicon (Si) | 0.08 max |
Hastelloy c-276 stands out among hastelloy equivalent materials because of its high molybdenum and tungsten content. These elements help the alloy resist pitting and crevice corrosion, especially in acidic and reducing environments. The low carbon and silicon levels reduce the risk of grain boundary precipitation, which can weaken the alloy during welding or high-temperature service.
Inconel 625 is another member of the nickel and chromium alloys group. This alloy is designed for strength and stability at high temperatures. Its chemical makeup includes a balance of nickel, chromium, and molybdenum, with the addition of niobium and tantalum for extra strength. The typical composition for inconel 625 is:
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | ~58 |
| Chromium (Cr) | 20–23 |
| Molybdenum (Mo) | 8–10 |
| Niobium + Tantalum | 3.15–4.15 |
| Iron (Fe) | 5 max |
| Carbon (C) | 0.1 max |
| Silicon (Si) | 0.5 max |
Inconel 625, like other inconel equivalent grades, uses higher chromium to improve oxidation resistance. The presence of niobium and tantalum increases the alloy’s mechanical strength and stability at elevated temperatures. These features make inconel 625 a popular choice for aerospace and power generation applications.
The unique blend of elements in hastelloy c-276 and inconel 625 gives each alloy its special properties. Hastelloy c-276’s higher molybdenum and tungsten content provides superior resistance to localized corrosion, such as pitting and crevice attack. This makes hastelloy c-276 the preferred option for chemical processing plants that handle strong acids and aggressive chemicals. The alloy’s ductility also allows it to withstand stress and deformation without cracking.
Inconel 625’s higher chromium content boosts its resistance to oxidation and chloride-induced stress corrosion cracking. The addition of niobium and tantalum strengthens the alloy, allowing it to maintain high tensile and yield strength even at temperatures near 1,000°C. This makes inconel 625 ideal for use in jet engines, turbines, and other high-temperature environments.
Tip: When selecting between nickel-based alloys like hastelloy c-276 and inconel 625, engineers should consider the specific chemical threats and temperature ranges in their application. Hastelloy equivalent materials excel in acidic and reducing conditions, while inconel equivalent grades offer better performance in oxidizing and high-temperature settings.
Both hastelloy and inconel demonstrate the versatility of nickel-based alloys. Their carefully balanced compositions allow them to meet the demands of modern industry, from chemical reactors to aerospace engines.
Hastelloy and Inconel both belong to the group of solid solution strengthened nickel-based alloys. These alloys show impressive strength and hardness, making them reliable for demanding industrial tasks. Inconel 625 often displays higher tensile and yield strength compared to Hastelloy C-276. This difference comes from the unique blend of alloying elements in each material. Inconel 625 can reach tensile strengths up to 965 MPa, while Hastelloy C-276 usually ranges from 690 to 785 MPa.
Hardness values for both alloys fall within a similar range. Engineers often measure hardness using the Rockwell B or C scale. Both alloys resist deformation and wear, which helps them last longer in harsh environments. Technical literature notes that the mechanical behavior of Inconel 625 and Hastelloy C-276 remains quite similar, even though their chemical compositions differ. This similarity means that both alloys can handle high mechanical loads without significant risk of failure.
Note: Special welding techniques, such as electromagnetic vibration-assisted GTAW, have improved the hardness and tensile strength of Hastelloy X welds. Welds produced at higher vibration frequencies showed even better mechanical properties than the base metal.
Ductility and toughness describe how well a material can bend or absorb energy before breaking. Both Hastelloy and Inconel offer high ductility, which allows them to stretch or deform without cracking. This property is important for parts that face sudden impacts or shifting loads.
Toughness in these alloys comes from their nickel-rich structure. Engineers have observed that Hastelloy X welds, when treated with advanced welding methods, show enhanced impact toughness. Fractographic analysis of these welds reveals ductile failure with fine and deep dimples. This pattern means the material can absorb more energy before fracturing, which is a sign of good toughness.
Inconel 625 also maintains its toughness at high temperatures. This feature makes it a top choice for aerospace and power generation, where parts must survive both heat and mechanical stress.
Density affects the weight of components made from these alloys. Hastelloy C-276 has a density of about 8.89 g/cm³, while Inconel 625 measures slightly lower at 8.44 g/cm³. The difference in density comes from the specific mix of elements in each alloy.
| Alloy | Density (g/cm³) |
|---|---|
| Hastelloy C-276 | 8.89 |
| Inconel 625 | 8.44 |
A higher density means heavier parts, which can influence design choices in industries like aerospace. Engineers must balance the need for strength and corrosion resistance with the desire to reduce weight. Both alloys provide a good mix of mechanical strength and manageable weight, making them suitable for many critical applications.
Engineers often select between Hastelloy and Inconel based on the balance of strength, toughness, and density required for each project.
Hastelloy c-276 stands out as one of the most corrosion-resistant metal alloys available today. Engineers often select hastelloy metal for environments with high corrosion risk, especially in chemical processing plants. The alloy’s high molybdenum and chromium content helps it form a stable, protective oxide layer. This layer shields the metal from aggressive chemicals and acids.
Standardized tests have shown the superior corrosion resistance of hastelloy c-276. For example:
Crevice corrosion resistance tests in 3.5% sodium chloride solution at 60°C for 30 days revealed no attack on hastelloy alloys.
The high molybdenum and chromium levels in hastelloy c-276 prevent crevice corrosion, even at elevated temperatures.
Gravimetric weight loss immersion tests and electrochemical methods in molten salt mixtures up to 500°C confirmed that hastelloy c-276 maintains low corrosion rates under aggressive conditions.
These results prove that hastelloy c-276 offers superior corrosion resistance in both acidic and high-temperature environments. This performance makes hastelloy metal a top choice for industries that handle sulfuric, hydrochloric, or hydrofluoric acids.
Inconel alloys, such as Inconel 625, provide excellent oxidation resistance and good corrosion resistance in many industrial settings. The higher chromium content in inconel helps the alloy resist attack in oxidizing environments, such as those containing sulfuric or nitric acid. Inconel’s ability to form a strong oxide layer protects it from high-temperature oxidation and stress-corrosion cracking.
However, inconel does not match the high corrosion resistance of hastelloy c-276 in reducing or highly acidic conditions. Standardized crevice corrosion tests have shown that inconel alloys can suffer attack in chloride-rich environments where hastelloy remains unaffected. Inconel performs best in applications like gas turbines, jet engines, and exhaust systems, where oxidation resistance at high temperature is critical.
The difference in corrosion resistance between hastelloy and inconel depends on their chemical makeup and the environment. The table below highlights these differences:
| Alloy | Key Element | Corrosion Environment | Corrosion Resistance Effect |
|---|---|---|---|
| Inconel 625 | Higher Chromium | Oxidizing (e.g., sulfuric, nitric acid) | Enhanced oxidation resistance due to chromium |
| Hastelloy C-276 | Higher Molybdenum | Reducing (e.g., hydrochloric acid) | Superior corrosion resistance due to molybdenum |
Hastelloy c-276 shows high corrosion resistance in acidic and reducing environments, making it ideal for chemical processing and oil and gas industries. Inconel excels in oxidizing and high-temperature settings, such as aerospace and power generation. Both alloys share similar nickel and iron content, but their corrosion resistance varies based on the environment.
Tip: When choosing between hastelloy and inconel, engineers should match the alloy’s corrosion resistance to the specific chemicals and temperatures in their application. Hastelloy c-276 provides superior corrosion resistance in high corrosion environments, while inconel offers strong oxidation resistance at elevated temperatures.
Inconel 625 stands out for its exceptional performance in high temperature environments. This alloy maintains its strength and stability even when exposed to extreme temperatures. Engineers often choose inconel 625 for gas turbines, jet engines, and nuclear reactors because it resists thermal stress and oxidation. Inconel 625 can retain up to 80% of its room temperature tensile strength at temperatures around 700°C (1292°F). This property makes inconel 625 a top choice for high-temperature applications where both mechanical strength and oxidation resistance are critical.
The nickel-based structure of inconel 625 helps it resist deformation and failure under thermal cycling. Its high chromium content further boosts its oxidation resistance, allowing it to withstand harsh, oxidizing atmospheres. Inconel 625’s proven use in demanding industries demonstrates its reliability at high temperature. Many engineers rely on inconel 625 for components that must operate safely and efficiently under extreme temperatures.
Note: Inconel 625’s ability to maintain high-temperature strength and resist oxidation makes it ideal for aerospace and power generation equipment.
Hastelloy alloys also perform well in high temperature settings, though their primary advantage lies in corrosion resistance. Studies have shown that hastelloy X plates can handle temperatures up to 800°C, with some dynamic deformation tests reaching 900°C. Researchers have measured the vibratory response and mechanical behavior of hastelloy at these elevated temperatures, providing valuable data for engineers.
Laser powder bed fusion manufactured hastelloy X has been tested at 650°C and 815°C, temperatures common in aeroengine combustion chambers. These tests reveal that hastelloy maintains good tensile strength and fatigue resistance, though plasticity and fatigue strength decrease as temperature rises. Fatigue tests at 750°C show how hastelloy X resists crack initiation and propagation, confirming its suitability for high temperature service.
Microstructural studies indicate that hastelloy’s cellular structures remain stable up to 600°C but degrade rapidly at 800°C. Service temperatures can exceed 850°C, but engineers must consider changes in microstructure and mechanical properties. Hastelloy’s performance at high temperature depends on the specific grade and application, but it remains a strong option for environments where both corrosion and heat are concerns.
Both inconel 625 and hastelloy offer high-temperature resistance, but their application suitability differs. Inconel 625 excels in environments where high temperature and oxidation resistance are the main requirements. Its use in jet engines, gas turbines, and nuclear reactors highlights its ability to perform under extreme temperatures.
Hastelloy, while capable of withstanding high temperature, is often chosen for its superior corrosion resistance in chemical processing and oil and gas industries. Engineers select hastelloy when equipment faces both aggressive chemicals and elevated temperatures. The choice between inconel 625 and hastelloy depends on the balance of high-temperature strength, oxidation resistance, and corrosion protection needed for each project.
Tip: For high-temperature applications that demand maximum strength and oxidation resistance, inconel 625 is usually the preferred alloy. When both corrosion and heat are concerns, hastelloy provides a reliable solution.
Hastelloy alloys have a reputation for good weldability, especially in demanding industrial settings. Engineers often select hastelloy for chemical plants and reactors because it resists cracking during welding. The alloy’s composition, with high nickel and molybdenum, helps prevent grain boundary precipitation. This feature reduces the risk of weld decay and stress corrosion cracking.
Welding hastelloy requires careful control of heat input and process parameters. When using advanced methods like laser powder bed fusion, researchers have measured a 93% decrease in cracking density after optimizing the process. This improvement means that welds become much more reliable and less likely to fail. Cracks in hastelloy welds usually follow high-angle grain boundaries, but proper technique can minimize this risk.
The formation of Mo6C carbides sometimes occurs at cracks and dendrites in hastelloy welds. These carbides can influence liquation cracking, but their impact remains manageable with correct welding practices. Hastelloy C-276 coatings show wear resistance about 1.5 times greater than 304 stainless steel. This high wear and corrosion resistance also suggests strong performance in welded joints.
Tip: Always use low-carbon filler metals and maintain clean surfaces to achieve the best weld quality with hastelloy.
Inconel alloys also offer good weldability, but they present unique challenges. Inconel 625, for example, work hardens quickly and forms carbides during welding. This behavior can make the alloy more difficult to weld compared to hastelloy. However, inconel’s high nickel and chromium content helps resist oxidation and stress corrosion cracking in welded areas.
Process parameters such as volume energy density (VED) play a key role in inconel weld quality. Values between 83.33 and 200.00 J/mm³ control the density, surface finish, and cracking behavior of the weld. Engineers have found that low MC carbide content in inconel 625 coatings leads to high pitting resistance and improved stress corrosion cracking resistance. Inconel 625 coatings show wear resistance about 1.3 times higher than 304 stainless steel, which supports their use in harsh environments.
Welders must use special techniques and tools to avoid defects in inconel welds. Preheating, slow cooling, and controlled heat input help reduce the risk of phase formation and cracking. Despite these challenges, inconel remains a top choice for high-temperature and corrosive applications.
| Alloy/Coating | Wear Resistance (vs 304 SS) | Stress Cracking Resistance |
|---|---|---|
| Hastelloy C-276 | ~1.5 times higher | Excellent, especially after process optimization |
| Inconel 625 | ~1.3 times higher | High, due to low MC carbide content |
Both hastelloy and inconel require skilled welding and fabrication practices. Hastelloy generally offers easier weldability and lower risk of stress cracking, while inconel demands more attention to process control but rewards with strong performance in extreme environments.
Machining hastelloy presents unique challenges for manufacturers. This alloy has high strength and toughness, which can cause rapid tool wear. Operators often use carbide or ceramic cutting tools to handle the hardness of hastelloy. Cutting speeds remain low to prevent overheating and maintain tool life. Coolants play a key role in reducing heat and improving surface finish.
Micro-electrical discharge machining (µ-EDM) tests show that capacitance has the greatest effect on material removal rate (MRR), tool wear rate (TWR), and depth of cut (DOC) for hastelloy C-276. When capacitance increases to about 5600-8900 pF, MRR, TWR, and DOC also rise, but they drop slightly if capacitance goes higher. Gap voltage and pulse on time also influence machining results. The best gap voltage for hastelloy is around 137.7 V, and the optimal pulse on time is about 41.5 µs. These settings help maximize MRR and minimize tool wear.
| Parameter | Effect on Hastelloy C-276 (µ-EDM) |
|---|---|
| Capacitance | Highest influence on MRR, TWR, DOC; peaks at 5600-8900 pF |
| Gap Voltage | Optimized at ~137.7 V for best results |
| Pulse on Time | Optimized at ~41.5 µs for max MRR, min TWR and DOC |
Operators who optimize these parameters can improve machining efficiency and reduce costs when working with hastelloy.
Inconel is known for its extreme difficulty during machining. The alloy work hardens quickly, which means the surface becomes harder as the tool cuts. This property leads to high tool wear and frequent tool changes. Machinists often use slow feed rates and sharp, wear-resistant tools to manage these issues. Coolants are essential to control heat and prevent surface damage.
Die-sinking electrical discharge machining (EDM) studies reveal that inconel 625 responds strongly to changes in electrical parameters. Pulse on time and peak current both increase MRR and TWR. Gap voltage affects MRR, TWR, and surface roughness (SR). Powder concentration in the EDM process can boost MRR by up to 79%. Surfactant concentration also plays a role, with a 36.86% impact on surface roughness. By optimizing these factors, machinists have achieved up to 93.75% improvement in MRR and nearly 59% better surface finish.
| Parameter | Effect on Inconel 625 (Die-sinking EDM) |
|---|---|
| Pulse on Time | Increases MRR and TWR |
| Peak Current | Increases MRR and TWR |
| Gap Voltage | Affects MRR, TWR, and SR |
| Powder Concentration | Major contributor (79%) to MRR improvement |
| Surfactant Concentration | Influences surface roughness (36.86% significance) |
Machinists who use advanced optimization methods, such as response surface methodology, can greatly improve the machinability of inconel.
Both hastelloy and inconel require careful planning and parameter control during machining. While hastelloy is tough, inconel often proves even more challenging due to rapid work hardening. Selecting the right tools and optimizing process settings help manufacturers achieve better results with these high-performance alloys.
Material costs play a major role in selecting between Hastelloy and Inconel for industrial projects. Both alloys belong to the premium category, but their prices can differ based on market demand, alloy composition, and manufacturing complexity. Recent market data shows the following price ranges:
| Alloy | Price per Kilogram (USD) | Characteristics |
|---|---|---|
| Inconel 625 | 47 – 56 | High strength, corrosion resistance, high temp |
| Hastelloy C-276 | 50 – 60 | Exceptional corrosion resistance, weldability |
Hastelloy C-276 usually costs slightly more per kilogram than Inconel 625. This higher price reflects its superior corrosion resistance and specialized use in chemical processing. Inconel 625, while still expensive, offers a balance of high strength and temperature resistance. Buyers should consider not only the price per kilogram but also the total amount needed for their project. Bulk orders and long-term contracts may help reduce costs.
Note: Prices can change due to fluctuations in raw material supply, global demand, and alloying element availability. Always check with suppliers for the latest rates before making a purchase.
Initial material cost is only one part of the total expense. Lifecycle costs include maintenance, downtime, replacement, and the expected service life of equipment. Inconel and Hastelloy both offer long-term value, but their advantages depend on the application.
| Alloy | High-Temperature Performance | Corrosion Resistance | Cost |
|---|---|---|---|
| Inconel | Maintains strength and stability above 1000°C | Outstanding | High |
| Haynes 230 | Slightly better high-temperature performance up to 1150°C | Good | High |
| Stainless Steel | Adequate up to 600°C | Good | Moderate |
Inconel stands out in environments with extreme heat. Its ability to maintain strength above 1000°C means less frequent replacement and lower maintenance costs in aerospace, power generation, and marine engineering. This durability often offsets the high upfront price. In chemical processing, where localized corrosion is a risk, Hastelloy may offer better value. Its resistance to acids and chlorides can reduce unplanned downtime and replacement frequency.
A cost comparison should include both the purchase price and the expected lifespan in the intended environment. For example, using Inconel in a high-temperature turbine may save money over time by reducing failures. In contrast, Hastelloy may lower costs in a chemical reactor by preventing corrosion-related shutdowns.
Tip: Always match the alloy’s strengths to the specific challenges of your application. The right choice can lead to significant savings over the equipment’s lifetime.
The chemical industry demands materials that can withstand aggressive environments. Engineers often select hastelloy for chemical processing applications because it resists corrosion from strong acids and harsh chemicals. This alloy contains high levels of molybdenum and nickel, which help it perform well in flue-gas desulfurization systems, absorber towers, and heat exchangers. Over the past 75 years, companies have relied on hastelloy to solve corrosion problems in chemical plants. Its weldability allows for easy fabrication of complex equipment.
Inconel also finds use in the chemical sector, especially where oxidizing conditions exist. Its higher chromium content provides strong resistance to oxidation and stress corrosion cracking. Inconel works well in reactors and piping that handle hot, corrosive fluids. Both alloys support safe and reliable operation in chemical plants, but hastelloy remains the top choice for environments with reducing acids.
| Alloy | Key Strengths | Common Uses in Chemical Industry |
|---|---|---|
| Hastelloy | Superior corrosion resistance, weldability | Absorber towers, heat exchangers, piping |
| Inconel | Oxidation resistance, high strength | Reactors, piping, valves |
Note: Hastelloy’s ability to resist under-deposit corrosion makes it ideal for continuous operation in chemical processing plants.
Oil and gas extraction exposes materials to high pressure, heat, and corrosive fluids. Inconel stands out in this sector because it resists sulfide stress cracking and chloride-induced corrosion. Engineers use inconel for downhole tubing, drill collars, mandrels, and packers. Its high strength and fatigue resistance ensure reliable performance in deep wells and offshore rigs.
Hastelloy also plays a role in petro processing, especially in equipment that handles sour gas or acidic fluids. Its resistance to localized corrosion helps prevent leaks and failures in pipelines and valves. Both alloys support the safe transport and processing of oil and gas.
Inconel applications in oil & gas:
Downhole tubing and tools
Wellhead and subsea components
Valves, flanges, and fittings
Heat exchangers and pressure vessels
Hastelloy applications in petro processing:
Acid gas removal units
Corrosive fluid handling systems
Tip: Inconel’s weldability allows for easy repair and fabrication of complex oilfield equipment.
Power plants require materials that can handle high temperatures and corrosive gases. Both hastelloy and inconel serve critical roles in this field. Engineers use hastelloy in pollution control systems, such as flue-gas desulfurization units, where it resists acidic condensates and high temperatures. Its durability extends the life of absorber towers and headers.
Inconel supports power generation by providing strength and oxidation resistance in turbine blades, nuclear reactor cores, and heat exchangers. Its ability to withstand temperatures up to 1093°C makes it suitable for the hottest parts of a power plant.
| Application Area | Hastelloy Use | Inconel Use |
|---|---|---|
| Pollution control | Absorber towers, piping | Not typical |
| Turbines and reactors | Some heat exchangers | Turbine blades, reactor cores |
Both alloys help reduce maintenance costs and improve safety in power generation. Their unique properties allow them to meet the demands of modern industrial applications.

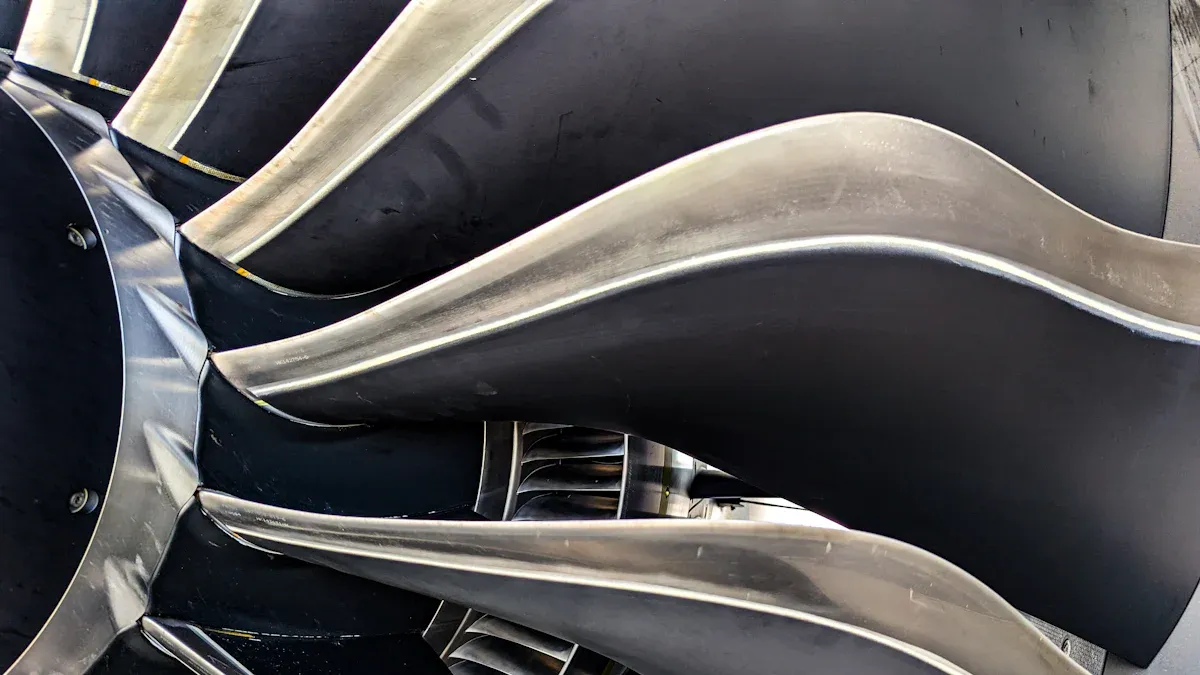

The aerospace industry demands materials that can handle extreme conditions. Engineers often choose Hastelloy and Inconel for critical aerospace components. Both alloys offer unique advantages for flight and space applications.
Inconel in Aerospace
Inconel alloys, especially Inconel 625 and Inconel 718, play a major role in aerospace engineering. These alloys keep their strength at very high temperatures. Jet engines, turbine blades, and exhaust systems often use Inconel. The alloy resists oxidation and thermal fatigue, which helps engines run safely at temperatures above 1,000°C.
| Aerospace Component | Common Alloy Used | Key Requirement |
|---|---|---|
| Turbine blades | Inconel 718 | High-temp strength |
| Exhaust systems | Inconel 625 | Oxidation resistance |
| Fasteners & bolts | Inconel 718 | Fatigue resistance |
| Rocket engine parts | Inconel 625 | Thermal stability |
Inconel’s ability to resist creep and maintain shape under stress makes it ideal for rotating parts. Aircraft manufacturers rely on Inconel for safety-critical hardware. The alloy’s durability reduces maintenance and extends the life of engine parts.
Hastelloy in Aerospace
Hastelloy alloys also serve important roles in aerospace. Engineers use Hastelloy X and Hastelloy C-276 for combustion chambers, afterburners, and other hot sections. These alloys resist both oxidation and corrosion, even when exposed to fuel byproducts and high heat.
Hastelloy X: Used in jet engine combustion zones and afterburners.
Hastelloy C-276: Selected for parts exposed to corrosive chemicals or salt spray.
Hastelloy’s weldability allows for complex shapes and repairs. The alloy’s resistance to cracking under thermal cycling helps prevent failures during rapid temperature changes.
Tip: Engineers often select Inconel for maximum strength at high temperatures, while they choose Hastelloy when both corrosion and heat resistance are needed.
Summary Table: Aerospace Alloy Selection
| Alloy | Best For | Typical Use Cases |
|---|---|---|
| Inconel | High-temp strength, oxidation | Turbine blades, fasteners |
| Hastelloy | Corrosion + heat resistance | Combustion chambers |
Aerospace applications push materials to their limits. Both Hastelloy and Inconel help aircraft and spacecraft perform safely and efficiently. The right choice depends on the balance of heat, corrosion, and mechanical stress in each part.
Selecting the right alloy for industrial applications requires careful evaluation of several factors. Engineers must consider the environment, expected service temperature, and the types of chemicals present. The hastelloy vs inconel decision often depends on the balance between corrosion resistance and high temperature performance.
A practical approach involves reviewing the following checklist:
Corrosive Environment: Identify if the application involves strong acids, chlorides, or reducing agents.
Operating Temperature: Determine the maximum and average temperatures the material will face.
Oxidizing Conditions: Assess if the environment contains oxygen or other oxidizing substances at elevated temperatures.
Mechanical Stress: Evaluate the level of mechanical load and potential for stress corrosion cracking.
Fabrication Needs: Consider the complexity of welding, machining, and forming required for the project.
Lifecycle Costs: Estimate maintenance, downtime, and replacement frequency over the equipment’s lifespan.
Recent advances in predictive modeling, such as machine learning regression models, help engineers analyze how temperature, material properties, and environmental factors affect corrosion rates. These tools provide insights into long-term performance and help prioritize the most important selection criteria.
Tip: Use a structured checklist to compare hastelloy vs inconel for each project. This method ensures that all critical factors receive attention before making a final choice.
Hastelloy offers outstanding corrosion resistance, especially in environments with aggressive acids and chlorides. Engineers often select hastelloy for chemical processing plants, marine equipment, and pollution control systems. The alloy’s high molybdenum and tungsten content protects against pitting, crevice corrosion, and stress corrosion cracking.
Choose hastelloy when:
The application involves strong acids like hydrochloric, sulfuric, or hydrofluoric acid.
Equipment faces both high temperature and highly corrosive chemicals.
The risk of localized corrosion or under-deposit corrosion is high.
Weldability and resistance to weld decay are important for complex fabrication.
Long-term reliability in harsh chemical environments is a priority.
Experimental studies show that hastelloy maintains a stable oxide layer and resists weight loss during cyclic oxidation at elevated temperatures. The alloy’s performance remains strong even when exposed to repeated heating and cooling cycles, making it suitable for reactors and heat exchangers.
Note: Hastelloy’s superior corrosion resistance can reduce maintenance costs and extend equipment life in the most challenging chemical environments.
Inconel excels in high temperature applications where strength and oxidation resistance are critical. Aerospace, power generation, and oil and gas industries rely on inconel for components exposed to extreme heat and mechanical stress. The alloy’s high chromium and nickel content allows it to maintain mechanical properties and resist oxidation at temperatures approaching 1,000°C.
Choose inconel when:
The primary challenge is maintaining strength and stability at high temperature.
The environment contains oxidizing agents or requires resistance to thermal cycling.
Components must withstand repeated heating and cooling without losing integrity.
The application involves jet engines, gas turbines, or nuclear reactors.
Fabrication requires high strength materials that resist creep and deformation.
Cyclic oxidation tests reveal that inconel forms a protective oxide layer that follows parabolic growth, indicating diffusion-controlled behavior. At very high temperatures, engineers must monitor for oxide spallation, but inconel’s overall performance remains reliable in demanding thermal environments.
Tip: Inconel provides the best results in applications where high temperature strength and oxidation resistance outweigh the need for extreme corrosion protection.
Decision-Making Table: Hastelloy vs Inconel
| Selection Factor | Choose Hastelloy | Choose Inconel |
|---|---|---|
| Strong acids present | ✅ | |
| High temperature (>900°C) | ✅ | |
| Oxidizing environment | ✅ | |
| Reducing environment | ✅ | |
| Stress corrosion risk | ✅ | ✅ |
| Complex fabrication | ✅ | |
| Aerospace/power gen | ✅ |
Engineers who follow a systematic selection process can match alloy properties to their specific operational needs, ensuring safety, reliability, and cost-effectiveness.
Selecting the right alloy depends on the environment and project goals. Hastelloy works best in highly corrosive settings, while inconel offers strong performance in high-temperature and high-stress applications. The table below shows how oxidation resistance, fabricability, and cost differ among popular grades:
| Alloy | Oxidation Resistance | Fabricability | Cost |
|---|---|---|---|
| Hastelloy X | Excellent | Good | High |
| Inconel 625 | Good | Excellent | Medium |
| Inconel 718 | Medium | Fair | Medium |
Engineers should consult with materials experts to match alloy properties to operational needs. Balancing performance and cost ensures the best long-term results.
Hastelloy resists corrosion from acids and chemicals. Inconel keeps its strength at high temperatures. Engineers choose Hastelloy for chemical plants and Inconel for aerospace or power generation.
Both alloys allow welding, but Hastelloy usually welds with fewer cracks. Inconel needs careful control of heat and special tools. Skilled welders get the best results with both materials.
Hastelloy often costs slightly more per kilogram than Inconel 625. However, total project cost depends on the application, maintenance, and expected lifespan.
Engineers use Hastelloy in chemical processing, marine equipment, and pollution control. The alloy protects against strong acids and harsh chemicals.
Aerospace companies select Inconel for jet engines and turbines. The alloy keeps its strength and resists oxidation at very high temperatures.
Yes. Hastelloy resists pitting and crevice corrosion from saltwater. Marine engineers often choose it for pumps, valves, and piping exposed to seawater.
Engineers review the environment, temperature, and chemical exposure. They pick Hastelloy for strong acids and Inconel for high heat or oxidizing conditions.
No. Both alloys require special cutting tools and slow speeds. Inconel work hardens quickly, making it even harder to machine than Hastelloy.
