| Availability: | |
|---|---|
| Quantity: | |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Other |
316 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 | – |
316L | ≤0.035 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 | – |
316H | 0.04-0.10 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 | – |
316Ti | ≤0.08 | ≤2.00 | ≤0.75 | ≤0.045 | ≤0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 | Ti: 5×(C+N)- 0.70; N: <0.10 |
316N | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 | N 0.10-0.16 |
316LN | ≤0.035 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 16.00-18.00 | 2.00-3.00 | 10.00-14.00 | N 0.10-0.16 |
Grade | Tensile Strength (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50 mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316 | 515 | 205 | 40 | 95 | 217 |
316L | 485 | 170 | 40 | 95 | 217 |
316H | 515 | 205 | 40 | 95 | 217 |
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Grade Specification Comparison
Grade | UNS | EN | DIN | GB | JIS | ||
BS | EN | No | Name | ||||
316L | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 00Cr17Ni13Mo2 | SUS 316L |
Stainless Steel 316 Pipe is an austenitic stainless steel grade pipe that has good resistance to chloride ion corrosion stress cracking. For this reason, the pipe is used in marine and sea water applications with ease. Zhejiang Xintongda Special Steel Manufacturing Co.,Ltd is a leading supplier and manufacturer of the Stainless Steel 316 Pipe products in various scales and dimensions.
316L stainless steel, also known as UNS S31603, is a low-carbon variant of 316 stainless steel. Let’s explore its properties, applications, and uses in various industries:
Medical Equipment and Surgical Instruments:
316L is widely used in medical devices and surgical instruments due to its excellent corrosion resistance and biocompatibility. It won’t corrode from exposure to bodily fluids or sterilization processes.
Kitchenware and Food Processing:
Pots, pans, and other kitchen utensils are often made from 316L stainless steel. Its resistance to corrosion from food and liquids makes it ideal for food preparation and storage.
In the food processing industry, 316L is used for equipment like tanks, conveyors, and mixing vessels.
Marine Applications:
316L is highly resistant to saltwater and harsh marine environments. It’s commonly used for boat fittings, marine hardware, and underwater structures.
Its corrosion resistance ensures longevity even in aggressive saltwater conditions.
Pharmaceutical Industry:
316L is employed in pharmaceutical manufacturing equipment, including reactors, storage tanks, and piping systems.
Its smooth surface finish and resistance to corrosion make it suitable for maintaining hygiene and sterility.
Chemical Processing:
In chemical plants, 316L is used for valves, pumps, and process equipment. Its resistance to acids, alkalis, and corrosive chemicals is crucial.
It performs well in aggressive environments where corrosion resistance is paramount.
Jewelry and Fashion Accessories:
Due to its aesthetic appeal, 316L stainless steel is used in jewelry, watches, and fashion accessories.
Its durability and resistance to tarnishing make it a popular choice.
Heat Exchangers and Evaporators:
316L is employed in heat exchangers, evaporators, and condensers due to its thermal conductivity and corrosion resistance.
It withstands high temperatures and aggressive media.
Textile and Paper Processing:
In textile dyeing and paper mills, 316L is used for dye vats, rollers, and other equipment.
Its resistance to chemicals and high temperatures ensures reliable performance.
Remember that 316L stainless steel offers a balance of mechanical properties, corrosion resistance, and ease of fabrication. It’s a versatile material used across diverse industries!
End of Pipe and Tube
Ply Wooden Boxes
PE Fabric Bundles
Standard seaworthy export packing
Plastic Bags, or as required
Marking
Supplier / Manufacturer Name or Custom Logo - on request
Specification
Material Grade
Nominal Size
Schedule or Wall Thickness
Method of Manufacturing (Seamless or Welded)
Heat Number

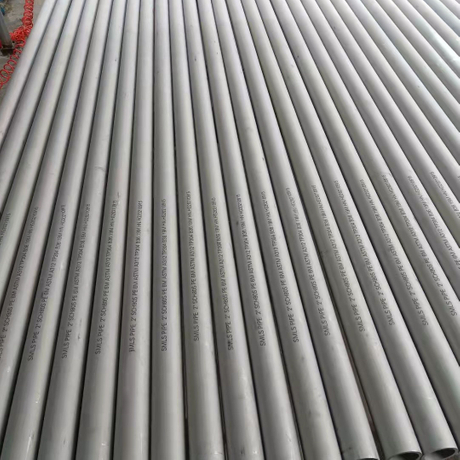

Marked Pipe Sample: XTD ASTM A312 TP316L SEAMLESS 42.2x 3.56*6000MM HEAT NO. 2023121205A15
Packing
Ply Wooden Boxes
PE Fabric Bundles
Standard seaworthy export packing
Plastic Bags, or as required
Delivery Condition
Pickled&Annealed, Polished, Bright Annealed.
All tubes shall be supplied as per applicable ASTM B163 /B426
Mill test certificates will be issued
We can provide 3.2 Certification according to the needs of you
Standard
ASTM A312: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
Heat Resistance
Good oxidation resistance in intermittent service to 870°C and in continuous service to 925°C. Continuous use of 316 in the 425-860°C range is not recommended if subsequent aqueous corrosion resistance is important.
Grade 316L is more resistant to carbide precipitation and can be used in the above temperature range.
Grade 316H has higher strength at elevated temperatures and is sometimes used for structural and pressure-containing applications at temperatures above about 500°C.
Heat Treatment
Solution Treatment (Annealing) - Heat to 1010-1120°C and cool rapidly. These grades cannot be hardened by thermal treatment.
Hot and Cold Working
316L stainless steel can be hot worked using most common hot working techniques. Optimal hot working temperatures should be in the range 1150-1260°C, and certainly should not be less than 930°C. Post work annealing should be carried out to induce maximum corrosion resistance.
Most common cold working operations such as shearing, drawing and stamping can be performed on 316L stainless steel. Post work annealing should be carried out to remove internal stresses.
