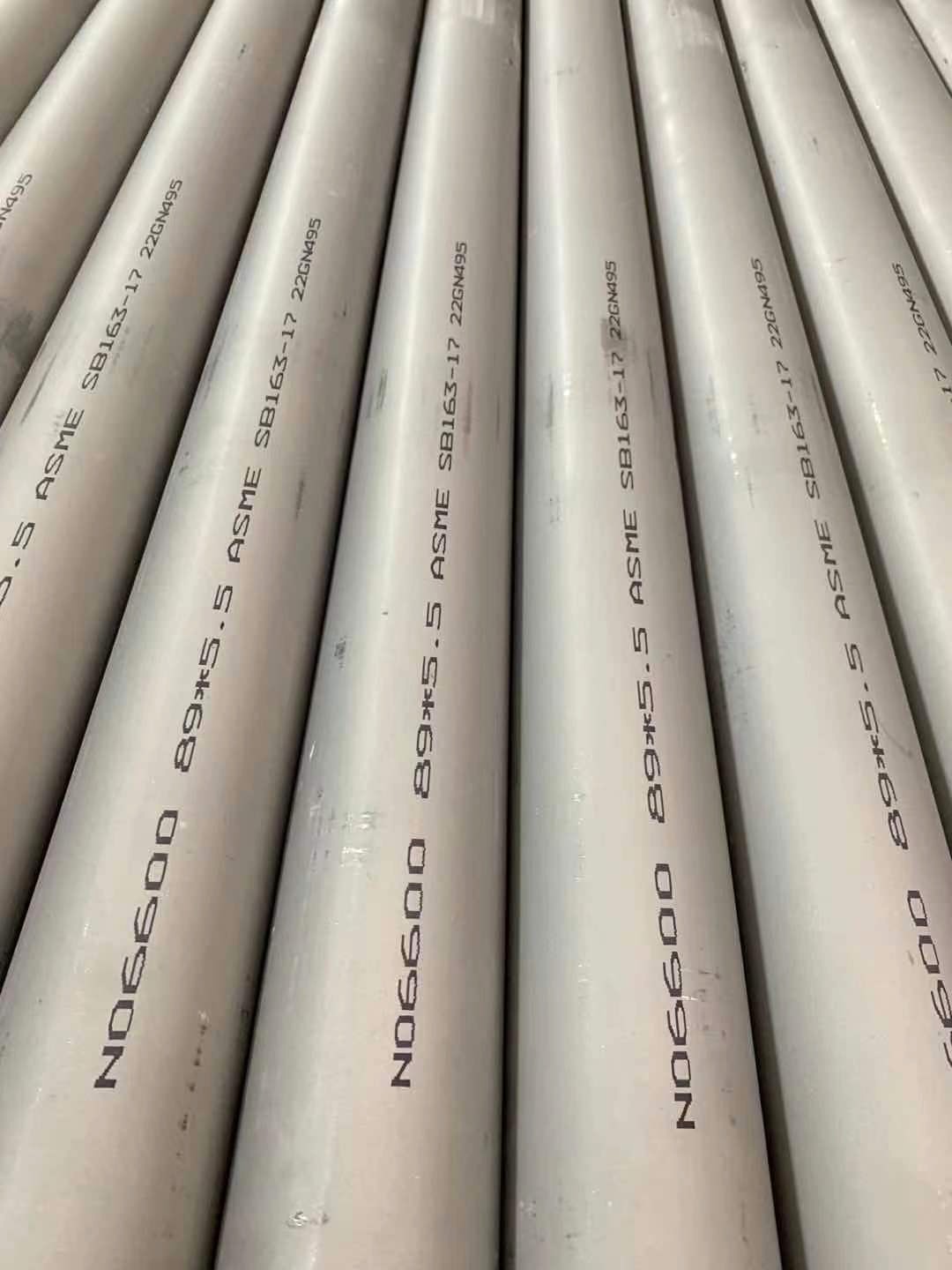

Inconel 600 (UNS N06600) seamless tube, for the grade of Inconel 600 (UNS N06600, DIN 2.4816) is a premium nickel-chromium-iron alloy renowned for its exceptional performance in high-temperature and corrosive environments. With a nickel content of ≥72.00%, this austenitic alloy combines the ductility of nickel with the corrosion resistance of chromium, making it a versatile solution for demanding industrial applications.
Manufactured to ASTM B163 and ASTM B167 standards, Inconel 600 seamless tubes undergo a precision manufacturing process to ensure uniform wall thickness, superior mechanical properties, and consistent performance. The alloy's unique composition provides a balance of high-temperature strength, oxidation resistance, and corrosion protection, making it indispensable in industries where reliability under extreme conditions is critical.
Zhejiang Xintongda Special Steel Manufacturing Co., Ltd. delivers Inconel 600 seamless tubes that meet the highest quality benchmarks, offering customers tailored solutions for their most challenging projects.
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
| N06600 | ≥72.00 | 14.00-17.00 | 6.00-10.00 | ≤0.15 | ≤1.00 | ≤0.015 | ≤0.50 | ≤0.50 |
| Grade | Tensile Strength (ksi/MPa) | Yield Strength (ksi/MPa) | Elongation (%) |
| N06600 | ≥75/517 | ≥30/207 | ≥30 |
| Property | Value |
| Density | 8.47 g/cm³ |
| Melting Point | 1370-1430°C |
| Thermal Conductivity (100°C) | 14.9 W/m·K |
| Electrical Resistivity | 103 μΩ·cm |
| Coefficient of Thermal Expansion (20-100°C) | 13.3 μm/m·°C |
| Elastic Modulus | 207 GPa |
Outer Diameter Range: 6-457 mm
Wall Thickness Range: 1-45 mm
Custom lengths available upon request
Inconel 600 demonstrates outstanding oxidation resistance up to 1093°C (2000°F), making it ideal for continuous use in high-temperature environments. It maintains structural integrity in furnace components, heat-treating fixtures, and incinerators, where other materials may fail due to thermal degradation.
Chloride Environments: Resistant to chloride-ion stress corrosion cracking, a critical advantage in marine and chemical processing applications.
Alkaline & Sulfur Compounds: Performs well in caustic solutions and environments with sulfur compounds, such as oil refining and gas processing.
Neutral & Salt Solutions: Unaffected by most neutral and alkaline salt solutions, making it suitable for food processing and pharmaceutical equipment.
The alloy offers a minimum tensile strength of 517 MPa and elongation of 30%, balancing durability with formability.
It retains mechanical properties across a wide temperature range, from cryogenic to high-heat applications.
Inconel 600 is readily weldable using standard techniques (TIG, MIG, stick welding) without compromising its corrosion resistance. It supports cold forming and machining, allowing complex designs for specialized equipment.
Its non-magnetic nature and resistance to contamination make it suitable for precision instruments and applications requiring material purity, such as electronics and nuclear power.
Reactor vessels and heat exchangers for handling organic/inorganic compounds
Equipment for titanium dioxide production (chloride route) and vinyl chloride monomer (VCM) synthesis
Corrosion-resistant piping in chemical plants
Downhole tubing and valves in high-temperature, high-pressure wells
Refinery components exposed to sulfur compounds
Offshore platforms and subsea equipment
Aircraft engine components and exhaust systems
Furnace parts and heat treatment fixtures
Incinerator linings and high-temperature ducts
Inconel 601 offers enhanced high-temperature oxidation resistance compared to 600, thanks to its aluminum content. While 600 excels in general corrosion resistance, 601 is preferred for extreme oxidation environments like furnace linings.
Inconel 600 has poor resistance to strong oxidizing solutions like hot concentrated nitric acid. For such environments, alloys with higher chromium content (e.g., Inconel 625) are more suitable.
Inconel 600 can withstand continuous service up to 1093°C (2000°F), maintaining oxidation resistance and mechanical stability.
No, Inconel 600 is non-magnetic, making it suitable for applications where magnetic interference must be avoided, such as in electronic components.
Inconel 600 resists chloride-ion stress corrosion cracking in seawater, making it suitable for marine hardware, desalination plants, and offshore structures.
Use nickel-based filler metals and control heat input to prevent carbide precipitation. Post-weld annealing may be recommended for critical applications to restore ductility.
Standard pickling or bright annealing is sufficient for most applications. Polishing can be applied for aesthetic or hygienic requirements in food/pharmaceutical industries.
Standard mill test certificates are included, and 3.2 Certification is available upon request to meet specific industry standards.
