Author: Site Editor Publish Time: 2025-07-16 Origin: Site
The top tube fittings for marine and industrial systems include elbows, tees, reducers, flanges, caps, adapters, unions, compression fittings, hydraulic fittings, and tube clamps. 316/316L stainless steel tube fittings deliver outstanding corrosion resistance, essential for reliable performance in harsh marine and industrial environments. Market data shows compression fittings lead with a 35% share, reflecting their versatility and durability. Selecting the right fittings protects systems and ensures safety, especially when sourced from a reputable stainless steel tube fittings manufacturer such as https://www.xtd-stainless.com/.
316 and 316L stainless steel tube fittings offer excellent corrosion resistance, making them ideal for harsh marine and industrial environments.
Compression fittings lead the market due to their leak-proof seals, easy installation, and durability under pressure and vibration.
Choosing the right fitting type, such as elbows, tees, reducers, or flanges, ensures safe, efficient fluid flow and system longevity.
Material compatibility and proper installation prevent leaks, corrosion, and mechanical failures in piping systems.
Regular inspection and maintenance extend the service life of tube fittings and help detect early signs of wear or damage.
Trusted manufacturers with certifications and strong customer support provide reliable, high-quality fittings and technical guidance.
Flange and union fittings offer strong, leak-resistant connections that simplify maintenance and support high-pressure applications.
Tube clamp fittings secure hoses and tubes, preventing leaks and system failures, especially in high-vibration marine settings.
The marine and industrial sectors rely on a variety of tube fittings to ensure safe and efficient fluid handling. The top tube fittings for these demanding environments include:
Elbows: Change the direction of flow in piping systems.
Tees: Allow for branching of pipelines.
Reducers: Connect pipes of different diameters.
Flanges: Provide secure connections for pipes and equipment.
Caps: Seal the ends of tubes to prevent leaks.
Adapters: Enable compatibility between different fitting types.
Unions: Allow for easy disassembly and maintenance.
Compression fittings: Offer leak-tight connections without welding.
Hydraulic fittings: Handle high-pressure fluid transfer.
Tube clamps: Secure tubes and prevent vibration.

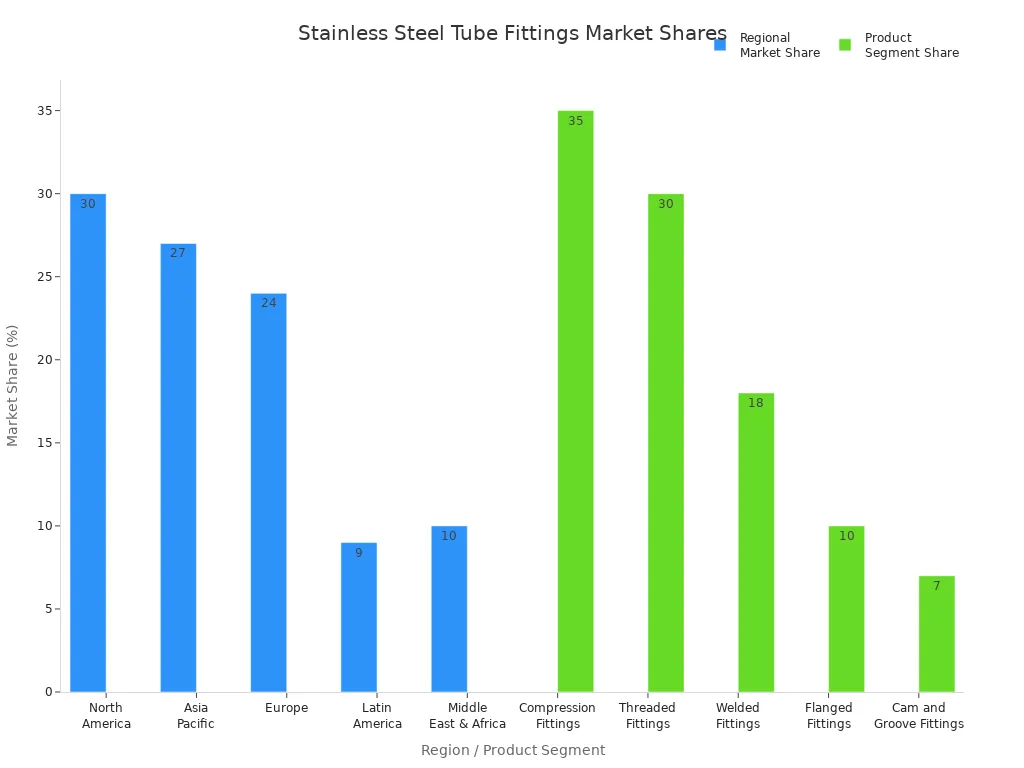

Industry reports show that DIN 2353 stainless steel tube fittings dominate the market, accounting for nearly 59% of total usage. These fittings deliver superior corrosion resistance and strength, making them ideal for harsh marine and industrial applications. Stainless steel tube fittings outperform brass alternatives, especially in offshore drilling and renewable energy projects. Leading manufacturers such as VOSS, Parker Hannifin, and Hy-Lok design high quality fittings tailored for these sectors, focusing on durability and eco-friendly solutions. Industrial applications represent over 40% of the demand for these fittings, highlighting their importance in manufacturing and material handling systems.
Note: Choosing the right types of stainless steel pipe fittings ensures system safety, reduces maintenance, and extends service life in challenging environments.
316 and 316L stainless steel set the standard for high quality tube fittings in marine and industrial settings. Their chemical composition and mechanical properties provide unmatched performance compared to other grades. The table below summarizes the key features:
| Feature/Metric | 316 Stainless Steel | 316L Stainless Steel | 304 Stainless Steel |
|---|---|---|---|
| Carbon Content | Up to 0.08% | Max 0.03% (low carbon) | ~0.03% |
| Corrosion Resistance | High, especially to chlorides | Enhanced at welds due to low C | Moderate, less than 316/316L |
| Molybdenum Content | 2-3% (improves pitting resistance) | 2-3% (same as 316) | None or very low |
| Tensile Strength | ~75,000 psi (515 MPa) | ~70,000 psi (485 MPa) | Comparable but generally lower |
| Weldability | Good, risk of carbide precipitation | Superior due to low carbon | Excellent |
| Typical Applications | Marine fittings, chemical tanks, food processing, medical devices | Welded structures, medical implants, pharmaceutical, marine | Kitchen equipment, general purpose |
316 stainless steel tube fittings offer high tensile strength and withstand elevated temperatures. 316L stainless steel tube fittings provide better impact toughness, especially at low temperatures, and superior weldability. Both grades excel in resisting pitting and crevice corrosion, particularly in chloride-rich environments. This makes them the preferred choice for high quality pipe products in marine, pharmaceutical, and chemical processing applications. The choice between 316 and 316L depends on welding needs, environmental exposure, and cost considerations. Quality remains consistent across both grades, ensuring reliable performance and long service life for all tube fittings.
Compression tube fittings play a critical role in both marine and industrial systems. These fittings secure tubing by compressing a ferrule onto the tube with a nut and body. This process creates a tight, leak-proof seal that is essential for maintaining system integrity. Operators value these tube fittings for their robust connections, which help maintain safety and efficiency even in high-pressure environments.
Key benefits of compression tube fittings include:
Leak-proof connections that support system safety and efficiency.
Durability under vibration and thermal changes, making them reliable in demanding conditions.
Simple installation and maintenance, which do not require special tools.
Versatility across industries such as oil and gas, pharmaceuticals, manufacturing, hydraulic, and pneumatic systems.
Enhanced durability and reliability in marine applications due to corrosion-resistant materials.
Note: Compression tube fittings contribute to secure, durable, and efficient fluid and gas transport connections, supporting operational safety and system longevity.
Press fit compression systems offer additional advantages. They provide reliable seals without the need for flame or arc, which eliminates the use of cutting oils or extensive pipe preparation. Installers can achieve quick assembly using specialized tools, without air compressors or electrical cables. These fittings meet ASME and ANSI Class 150 standards, making them suitable for water, oil, gases, and chemical services, with pressure ratings up to 500 psi. Their temperature tolerance ranges from -34°C to 149°C, depending on the seal material. Plain end compression couplers allow secure pipe joining without welding, threading, or grooving, which is ideal for rapid installation and emergency repairs. Available in various sizes and configurations, these tube fittings adapt to different pipe diameters and pressures, supporting long-term use in civil, water, oil and gas, marine, and automotive industries.
The use of 316 and 316L stainless steel significantly enhances the performance and lifespan of compression tube fittings. These materials offer superior corrosion resistance due to their molybdenum content, which is especially effective in chloride-rich and marine environments. The chromium oxide passive layer on 316 stainless steel prevents rust, ensuring long-term structural integrity.
The mechanical strength of 316 stainless steel is high, with a tensile strength around 515 MPa and a yield strength of about 205 MPa. This supports durability under dynamic and harsh conditions. 316L stainless steel, with its lower carbon content, reduces the risk of carbide precipitation and weld decay, making it preferable for welded compression fittings. Improved weldability in 316L reduces labor and post-weld treatment costs, contributing to longer service life and reliability.
Both 316 and 316L tube fittings exhibit excellent resistance to pitting and crevice corrosion, especially in marine and chloride-heavy environments. This enhances the durability of the fittings and reduces the frequency of repairs or replacements. Proper fabrication techniques, such as TIG and MIG welding with controlled heat input, maintain material integrity and prevent corrosion. Surface finishing methods like electropolishing and passivation further improve corrosion resistance by eliminating surface imperfections.
| Property | 316 Stainless Steel | 316L Stainless Steel |
|---|---|---|
| Corrosion Resistance | Excellent | Excellent |
| Weldability | Good | Superior |
| Mechanical Strength | High | Slightly Lower |
| Durability in Marine | Outstanding | Outstanding |
Protective coatings and routine inspections extend the service life of these tube fittings by preventing environmental damage and enabling early detection of wear. Careful handling and installation also help preserve the protective oxide layer, ensuring reliable performance in harsh environments.

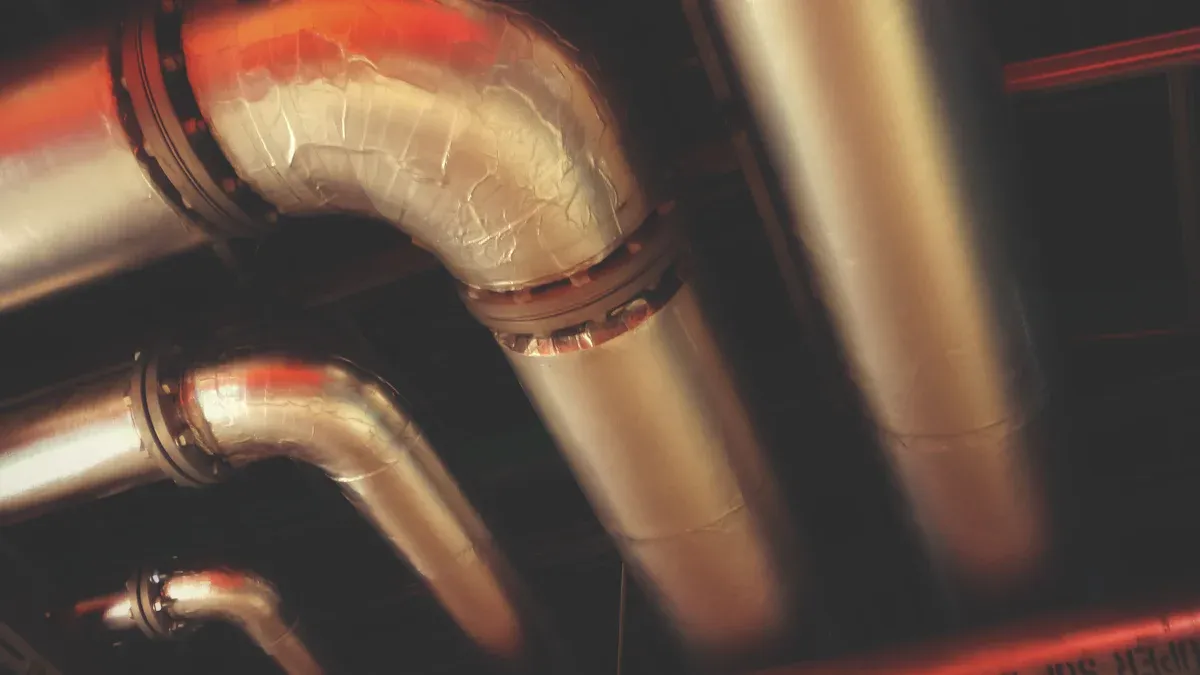

Elbow tube fittings play a vital role in both marine and industrial applications. These fittings allow piping systems to change direction, which is essential for efficient routing in confined or complex spaces. In marine environments, elbow tube fittings appear in shipbuilding, offshore platforms, and oil rigs. They help engineers design piping layouts that fit within tight quarters while maintaining smooth fluid flow. Their robust construction withstands the harsh conditions found at sea, including constant exposure to saltwater and fluctuating temperatures.
In industrial applications, elbow tube fittings are indispensable in oil and gas pipelines, chemical processing plants, power generation facilities, and HVAC systems. They also support sanitary piping in food and beverage production and pharmaceutical manufacturing. By enabling precise changes in flow direction, these fittings help maintain system integrity and prevent pressure drops or turbulence.
Common types of elbow tube fittings include:
90-degree elbows, which create right-angle turns and are widely used in compact machinery and piping systems.
180-degree elbows, or U-bends, which reverse fluid flow in limited spaces, often found in hydraulic testing rigs and heating systems.
Reducing elbows, which change both the diameter and direction of the pipe, frequently used in water treatment and petrochemical systems.
90-degree elbow tube fittings are especially popular in marine settings due to their durability, ease of installation, and ability to redirect flow without reducing efficiency. These features make them ideal for quick repairs and upgrades on boats and offshore platforms.
Elbow tube fittings made from 316 and 316L stainless steel offer exceptional corrosion resistance, making them the preferred choice for demanding environments. The molybdenum content in these alloys enhances their ability to resist pitting and crevice corrosion, especially in chloride-rich marine settings. This property ensures that the fittings maintain their structural integrity even when exposed to saltwater, chemicals, and high temperatures.
316L stainless steel stands out for its superior resistance to pitting and stress corrosion cracking, particularly in welded areas. This advantage makes it more reliable than other stainless steel grades, such as 316Ti, in maintaining corrosion resistance after fabrication. The excellent weldability of 316L supports the production of high-quality elbow tube fittings that retain their protective properties throughout their service life.
Stainless steel elbow tube fittings provide several benefits:
Leak-proof connections that enhance safety and reduce maintenance needs.
Long service life due to resistance to environmental factors.
Cost-effectiveness over time, as fewer replacements are needed.
Versatility in sizes and configurations for various system requirements.
Easy maintenance, which supports ongoing reliability.
ASTM A403 WP316/316L elbow tube fittings undergo rigorous manufacturing and testing processes. These standards ensure consistent quality and corrosion resistant performance in both marine and industrial applications. Their durability and integrity make them a smart investment for any system exposed to harsh or corrosive environments.
Tee tube fittings serve as essential components in both marine and industrial piping systems. Shaped like the letter "T," these fittings create intersections that allow fluids or gases to branch in three directions. Engineers rely on tee tube fittings to control and distribute flow efficiently, especially in complex networks. Their versatility supports a wide range of applications, from oil and gas to water treatment and shipbuilding.
The table below highlights common types of tee tube fittings, their connection methods, and typical use cases:
| Type of Tee Fitting | Features and Connection Method | Typical Use Cases and Pressure Range |
|---|---|---|
| Threaded Tee | Internal/external threads; easy installation | Low to medium pressure; water supply, gas pipelines, small commercial lines |
| Flanged Tee | Flanged connections for secure fit | Medium to high pressure; industrial pipelines, oil, chemical engineering |
| Straight Tee | 90-degree branch connection | Building water supply, HVAC, chemical pipelines |
| Slant Tee | Angled branch for smoother flow | High flow; chemical transport, oil, natural gas pipelines |
| Butt Weld Tee | Welded for strong bond | High-pressure or high-temperature pipelines; oil, gas, power industries |
| Socket Weld Tee | Pipe inserted and welded into socket | Low to medium pressure; water treatment, HVAC |
| Compression Tee | Compression ring and nut, no welding required | Low to medium pressure; water supply, gas, laboratory piping |
Tee tube fittings appear in many critical systems. In marine environments, they connect and control pipes on vessels, ensuring proper operation of fluid and gas systems. In industrial applications, these fittings help manage flow in chemical plants, oil refineries, and HVAC systems. Their ability to handle different pressures and sizes makes them suitable for both small-scale and large-scale projects.
Tee tube fittings play a vital role in distributing water, chemicals, and gases, making them indispensable for safe and efficient system design.
Manufacturers design tee tube fittings for durability in the most challenging conditions. Stainless steel 316L tee fittings offer superior corrosion resistance, especially against chloride-induced corrosion common in marine environments. The low carbon content of 316L enhances weldability and reduces the risk of intergranular corrosion, which is critical for long-term performance.
Several factors contribute to the durability of these fittings:
Polished or coated surfaces reduce contamination and corrosion.
Compliance with international standards, such as ASTM A403, ensures consistent material quality.
Proper installation practices, including correct alignment and torque, minimize mechanical stress and prevent premature wear.
Regular maintenance, such as cleaning with chloride-free agents and passivation treatments, extends the lifespan of tube fittings.
316L stainless steel resists seawater corrosion, making these fittings ideal for shipbuilding and offshore platforms.
Seamless and welded manufacturing methods provide structural integrity and reliability under high pressure.
Routine inspections help detect early signs of corrosion or leaks, allowing for timely repairs. These practices ensure that tee tube fittings maintain their strength and function, even in environments exposed to saltwater, chemicals, and extreme temperatures.
Tip: Regular maintenance and proper installation maximize the service life of tee tube fittings, reducing downtime and replacement costs.
Reducer tube fittings play a crucial role in fluid handling systems. These fittings connect tubes or ports of different sizes, ensuring a smooth transition and maintaining efficient fluid flow. Engineers often use reducer tube fittings when a system requires a change in pipe diameter, such as moving from a larger supply line to a smaller branch. This transition helps control flow rates and pressure within the system.
Reducer tube fittings serve as connectors that match or transition between different tube or port sizes.
They ensure secure and efficient fluid flow by connecting tubes or ports of different diameters.
Many designs, such as Ermeto DIN port reducers, facilitate connections between varying sizes in high-pressure hydraulic applications.
These fittings often withstand pressures up to 400 bar, making them suitable for demanding environments.
Push-in reducer fittings allow for easy installation without tools, providing a seamless and leak-proof connection.
Industries such as automotive, pneumatic, and industrial systems rely on these fittings to resize tubes as needed.
Tip: Choosing the right reducer tube fittings helps prevent leaks and pressure drops, supporting the overall safety and efficiency of marine and industrial systems.
Manufacturers produce reducer tube fittings from a range of material grades to meet the demands of different environments. The choice of material affects corrosion resistance, strength, and suitability for specific applications. The table below summarizes the most common material grades and their key properties:
| Material Grade | Typical Applications | Key Properties and Differences |
|---|---|---|
| Stainless Steel 304/316 | General-purpose, plumbing, heating, chemical industry | Good corrosion resistance, widely used in less aggressive environments |
| Duplex 2205 | High-pressure systems, offshore platforms, oil rigs | Higher strength and corrosion resistance than 304/316 |
| Super Duplex 2507 | Aggressive environments like seawater, offshore | Superior corrosion resistance, suitable for harsh marine conditions |
| Titanium Grade 2 & 5 | Marine, chemical processing, aerospace, high-performance | Exceptional corrosion resistance, high strength-to-weight ratio |
| Alloy Steel (A234 WPB, A335 P11) | Oil, gas, power plants, high temperature and pressure | High durability under thermal stress and pressure |
| Bronze | Traditional marine use | Good corrosion resistance but heavier and less resistant than titanium |
| Monel 400 | Marine environments | Excellent seawater corrosion resistance |
| Inconel and Incoloy | High-temperature, chemical processing | High corrosion and oxidation resistance |
Titanium reducers stand out for their superior corrosion resistance, especially in seawater. They offer a high strength-to-weight ratio, making them lighter and stronger than bronze. Bronze, while historically significant in marine applications, requires more maintenance and is heavier. Alloy steel fittings, such as A234 WPB and A335 P11, excel in high-pressure and high-temperature environments like oil and gas or power plants. These materials provide durability and safety where extreme conditions exist.
Selecting the appropriate material grade for reducer tube fittings ensures long service life and reliable performance. Marine and industrial systems benefit from the right combination of corrosion resistance, strength, and ease of installation.
Flange tube fittings play a vital role in both industrial and marine environments. These fittings connect pipes, valves, and pumps, forming secure and reliable joints in complex piping systems. Engineers often select stainless steel flanges for marine applications because they resist corrosion and withstand harsh maritime conditions. Marine flanges follow strict standards, such as DIN, to ensure quality and compatibility with other system components.
In marine settings, flange tube fittings appear in shipbuilding, offshore platforms, and water treatment facilities. They help maintain the integrity of water distribution systems and provide leak-free connections in exhaust systems. These fittings also optimize flow and reduce the risk of leaks, which is critical for safety at sea.
Industrial sectors rely on flange tube fittings for their versatility and strength. Common industries include oil and gas, chemical processing, and water treatment plants. Flanges prevent leakages, reduce vibration, and minimize stress concentration, which enhances the structural integrity of piping systems. Their compatibility with various pipe materials, such as steel, PVC, and copper, makes them a preferred choice for many engineers.
In marine applications, corrosion resistance remains a top priority.
Water treatment facilities use flanges to ensure safe and efficient water distribution.
Flange tube fittings allow for easy alignment and installation, simplifying maintenance and repairs.
Marine flat welding flanges offer a cost-effective solution for pipelines operating at normal temperatures and pressures below 2.5 MPa.
Marine butt welding flanges provide high rigidity and sealing, suitable for high-pressure and high-temperature applications.
Marine loose flanges allow movement and are often paired with copper-nickel alloy pipes for added corrosion resistance.
Tip: Flange tube fittings support quick system modifications and repairs, reducing downtime in both industrial and marine operations.
Flange tube fittings deliver exceptional strength and effective sealing, especially in high-pressure environments. Their robust design features a larger sealing surface, which reduces the risk of leaks even under dynamic or extreme conditions. Manufacturers often use durable materials like stainless steel and alloy steel to ensure these fittings can resist intense pressure variations and corrosive elements.
Hydraulic flanges stand out for their ability to handle pressures beyond the limits of conventional fittings. Their design includes features such as O-rings and gaskets, which create airtight and watertight joints. Proper installation involves several key steps:
Inspect all components for damage or wear.
Seat O-rings correctly to prevent leaks.
Align the flange precisely with the mating surface.
Hand-tighten bolts before using a torque wrench in a crisscross pattern.
This method prevents common errors, such as over-tightening or misalignment, which can compromise sealing and strength. Welding neck flanges provide excellent resistance to deformation, making them ideal for pipelines with large temperature or pressure fluctuations. Threaded flanges allow for easy installation and maintenance, though they are less suitable for rapid temperature changes or very high pressures.
The table below summarizes common flange types and their key features:
| Flange Type | Key Features | Typical Use Case |
|---|---|---|
| Welding Neck Flange | High strength, excellent sealing | High-pressure pipelines |
| Threaded Flange | Easy installation, moderate sealing | Low to medium pressure systems |
| Flat Welding Flange | Cost-effective, for normal temperature/pressure | Marine pipelines, water systems |
| Loose Flange | Allows movement, used with alloy pipes | Expansion joints, marine systems |
Note: Flange tube fittings outperform traditional threaded fittings in pressure handling, vibration resistance, and leak prevention, ensuring operational stability and safety in demanding systems.
Cap tube fittings, also known as pipe caps or end caps, play a vital role in protecting and sealing piping systems across marine and industrial environments. These components close off the ends of pipes, shielding them from damage, moisture, dust, and rust. By providing a secure fit, cap tube fittings help maintain system pressure and prevent leaks, which is essential for preserving the integrity of fluid and gas systems.
Operators rely on cap tube fittings to prevent contamination from external substances. In industries such as pharmaceuticals and food processing, blocking dust and debris from entering the pipe is critical for maintaining product purity. During storage and transportation, these fittings protect pipe ends from physical damage and environmental exposure. They also control moisture ingress, reducing the risk of internal corrosion or freezing.
Cap tube fittings support maintenance and system management. By isolating sections of piping, they allow for safe cleaning, repairs, or pressure testing. Their design enables easy installation and removal, which increases efficiency during routine inspections or emergency interventions. Threaded and welded options provide flexibility for different applications, ensuring a tight seal that maintains fluid containment and system pressure.
Tip: Using cap tube fittings helps prevent leaks, contamination, and physical damage, safeguarding the reliability and longevity of piping systems.
316 stainless steel offers significant advantages for cap tube fittings, especially in harsh marine and industrial settings. This material combines high strength with excellent corrosion resistance, making it ideal for environments exposed to saltwater, chemicals, and extreme temperatures. The corrosion resistant properties of 316 stainless steel ensure that fittings maintain their performance even after long-term exposure to aggressive elements.
Key benefits of 316 stainless steel cap tube fittings include:
Combines corrosion resistance with high strength, allowing for reduced wall thickness and weight.
Resists heat and chemical damage, supporting use in high-temperature and aggressive chemical environments.
Withstands very high flow rates and long-term exposure to harsh conditions.
Suitable for potable water systems, including those with varying chloride levels.
Fully recyclable, offering high residual scrap value and supporting sustainability.
Requires low maintenance, with no need for additional coatings or treatments.
Expected lifespan exceeds 50 years, reducing downtime and maintenance costs.
Engineers select 316 stainless steel cap tube fittings for demanding applications such as instrumentation, vacuum, gas, cryogenic, and high-pressure services. These fittings provide a reliable, leak-proof seal and operate at pressures up to 11,000 psi and temperatures from -198°C to 648°C. The table below summarizes the key benefits:
| Benefit Category | Details |
|---|---|
| Corrosion Resistance | Superior resistance to corrosion, suitable for chemical and petroleum industries |
| Strength & Durability | High tensile strength (515 MPa) and yield strength (205 MPa) ensure durability |
| Heat Resistance | Melting point between 1390-1440°C, suitable for high temperature applications |
| Chemical Compatibility | Compatible with various chemical processing environments |
| Weldability | Good weldability for secure and reliable fittings |
| Applications | Used in chemical, petroleum, power generation, pulp, paper, and manufacturing industries |
| Mechanical Properties | Elongation 40%, Hardness Rockwell B 95 |
| Physical Properties | Density 8.027 g/cm³, Thermal Conductivity 16.3 W/M.K, Modulus of Elasticity 193 GPa |
Engineers value these properties because they ensure cap tube fittings deliver long-term protection, sealing, and system reliability in the most demanding environments.
Adapter tube fittings stand out as some of the most adaptable components in marine and industrial piping systems. Engineers rely on these fittings to connect pipes of different sizes, materials, and thread types. Their design allows for seamless integration into new or existing systems, supporting a wide range of applications.
Adapter kits often include multiple types and sizes, giving operators flexibility for various connection needs in marine systems.
Many adapters feature O-rings, which create leak-proof seals. This design enhances durability and reliability, especially in high-pressure or high-temperature environments.
These fittings prevent leaks in critical systems such as fuel transfer, hydraulic, pneumatic, cooling, lubrication, and exhaust lines.
O-ring sealed adapters simplify installation and improve safety by reducing the risk of fluid or gas leaks.
The robust construction and high-quality materials, such as stainless steel or carbon steel, make these adapters suitable for harsh marine and industrial conditions.
Specialty adapters, like swivel types, allow rotation without loosening the connection. This feature helps installers work in tight or complex spaces.
The wide range of configurations—straight, elbow, tee, and reducer—ensures adaptability across diverse systems.
Compatibility with different thread standards, such as BSPP and BSPT, further increases their usefulness.
Adapter tube fittings help engineers design flexible piping layouts. Their durability reduces the need for frequent replacements, making them a cost-effective choice for demanding applications.
Adapter tube fittings play a key role in industries such as oil and gas, manufacturing, construction, automotive, and agriculture. Their ability to withstand high pressure and temperature makes them essential for hydraulic and pneumatic systems. By providing secure, leak-free connections, these fittings support system longevity and performance.
Selecting the right adapter tube fitting requires careful attention to compatibility. The material and thread type must match the pipes to ensure a secure and reliable connection. Using incompatible fittings can lead to leaks, mechanical failure, or even system damage.
| Pipe Material | Recommended Fitting Type | Compatibility Notes |
|---|---|---|
| PVC/CPVC | Solvent-welded, transition fittings | Use only with matching material; not interchangeable due to chemical and heat resistance differences. |
| Copper | Soldered, compression, push-fit, flare, sweat | Select fittings compatible with copper type; ensure proper sealing. |
| Galvanized Steel | Threaded, flanged, welded, transition | Use fittings designed for galvanized steel; match thread standards. |
| PEX | Push-fit, crimp, clamp, expansion | Use PEX-specific fittings; follow manufacturer instructions. |
| Stainless/Carbon Steel | Threaded, welded, compression, O-ring sealed | Match material hardness and thread standards to prevent leaks or damage. |
Installers must identify the pipe material before selecting an adapter. Fittings and adapters should be made from the same material as the pipes to avoid issues such as thread breakage or leaks caused by differences in hardness and expansion rates. Matching thread standards, such as male JIC to female JIC, ensures proper sealing and mechanical fit.
Always follow manufacturer instructions and local codes when installing adapter tube fittings. Proper compatibility guarantees system safety and long-term performance.
Adapter tube fittings offer unmatched versatility and compatibility, making them indispensable for marine and industrial piping systems. Their thoughtful design and material selection help engineers build reliable, efficient, and safe fluid handling networks.
Union tube fittings simplify installation and maintenance in marine and industrial systems. Their design allows operators to connect or disconnect pipes quickly, even in tight spaces or challenging environments. Many union fittings feature a two-ferrule system that compensates for variations in tube diameter, wall thickness, and hardness. This design ensures a secure fit every time.
The low torque assembly process enables users to tighten fittings easily with standard wrenches.
The nut can be backed off for disassembly and reassembly without damaging the fitting or tubing.
Rotational flexibility reduces stress during installation and operation, making the process smoother.
Visual confirmation of proper assembly helps technicians ensure a correct fit.
No special tools or extensive training are required, which saves time and reduces labor costs.
Union tube fittings also offer compatibility with other tube fitting systems and hoses. Manufacturers provide these fittings in a variety of materials, including corrosion-resistant coatings for harsh marine environments. Their versatility supports a wide range of applications, from hydraulic lines to chemical processing systems.
Tip: Quick and easy assembly with union tube fittings helps minimize downtime during repairs or upgrades, keeping operations running smoothly.
Engineers trust union tube fittings for their ability to create leak-proof connections in high-pressure and high-vibration environments. The three-part construction—nut, male end, and female end—allows the nut to compress the ends together, forming a tight, leak-proof seal. This compression force distributes evenly, ensuring the connection withstands pressure and temperature changes.
Union fittings use several mechanical sealing methods to prevent leaks:
Compression of seats, O-rings, and flared surfaces creates effective seals in hydraulic systems.
O-ring Face Seal (ORFS) connections compress an O-ring onto a flat face, providing superior leak control.
Flanged connections use bolts and O-rings for strong seals in high-pressure applications.
Applying thread sealants or Teflon tape on male threads further enhances leak prevention.
These fittings accommodate movement caused by vibration or thermal expansion, reducing stress on the piping and minimizing the risk of leaks. Union tube fittings are available in welded, socket weld, flanged, and compression types, each designed for specific high-pressure applications. Their robust design ensures reliable, leak-proof performance, even in the most demanding marine and industrial settings.
Note: Leak-proof connections are essential for safety and efficiency in fluid handling systems. Union tube fittings deliver the reliability needed for critical operations.
Hydraulic tube fittings play a critical role in marine systems. Engineers select stainless steel hydraulic fittings for their exceptional corrosion resistance and durability. These fittings support a wide range of marine applications, including shipbuilding, offshore platforms, and marine equipment. Stainless steel, especially alloy 316, withstands temperatures up to 1,000°F (538°C), making it suitable for harsh marine environments.
Stainless steel hydraulic fittings extend the service life of equipment exposed to saltwater.
These fittings provide leak-free and reliable performance under high pressure and extreme temperatures.
Marine hydraulic systems use various fitting types, such as nuts, sleeves, straight, 90-degree, 45-degree, Tee, and Cross, to ensure secure and pressure-stable connections.
The toughness and temperature ratings of stainless steel make it the preferred choice for marine hydraulic systems.
Stainless steel fittings outperform brass and carbon steel in durability, longevity, and maintenance requirements.
Marine applications demand fittings that can resist constant exposure to saltwater and harsh conditions. Stainless steel hydraulic tube fittings deliver superior performance in these settings. Their corrosion resistance ensures that systems remain operational and safe, even after years of use. Shipbuilders and marine engineers rely on these fittings to maintain the integrity of hydraulic systems in boats and offshore installations.
Tip: Choosing stainless steel hydraulic tube fittings for marine systems reduces maintenance costs and increases equipment reliability.
Hydraulic tube fittings must handle extreme pressures in both industrial and marine environments. Manufacturers design these fittings with robust sealing mechanisms, such as O-rings or metal-to-metal contact seals, to ensure leak-free connections. High-strength materials like stainless steel and specialized alloys allow these fittings to withstand the demands of high-pressure pipeline systems.
EO-2 hydraulic tube fittings use elastomeric seals on all joints, creating hermetically sealed connections suitable for high-pressure applications.
These fittings comply with DIN and ISO standards, ensuring reliability and compatibility across systems.
EO-2 fittings handle pressures up to 800 bar (about 11,600 psi) for the S series and 500 bar for the L series, making them ideal for demanding marine and industrial uses.
The static compression design prevents air ingress under vacuum, maintaining system integrity.
Durable elastomeric seals do not require re-tightening, even after years of operation under extreme conditions.
Assembly is simplified with reduced tightening torque and integrated tools, lowering the risk of leaks and tube blow-off.
These fittings remain reusable and maintain sealing performance after multiple disassemblies, supporting maintenance in harsh environments.
Hydraulic tube fittings must also resist saltwater corrosion and maintain integrity under deep-water pressure. Advanced sealing technologies and corrosion-resistant materials ensure that these fittings perform reliably in high-pressure pipeline systems. Engineers select fittings with pressure ratings that exceed system maximums and ensure compatibility with hydraulic fluids to prevent degradation.
Note: Reliable hydraulic tube fittings are essential for safety and efficiency in high-pressure marine and industrial systems.
Tube clamp fittings play a crucial role in maintaining the integrity of marine and industrial piping systems. These fittings secure tubes and hoses, preventing leaks and system failures. To achieve reliable and leak-free connections, technicians follow several best practices:
Position clamps about 1/4 inch from the hose end, ensuring they sit over the fitting’s barbed area for a tight seal.
Avoid placing clamps on barb edges to prevent hose damage.
Select the correct tool for each clamp type—use screwdrivers for worm gear clamps, socket wrenches for T-bolt clamps, and torque wrenches for precise tightening.
Tighten clamps until snug, but not excessively, to avoid crushing the hose.
Check clamp alignment to distribute pressure evenly and prevent hose damage.
Avoid under-tightening, which can lead to leaks or clamp slippage.
Inspect clamps regularly for signs of loosening, corrosion, or damage, especially in high-vibration or harsh environments.
Use specialized tools for spring or ear clamps to prevent accidental damage.
Train personnel on proper installation techniques and tool use.
Maintain a schedule for inspections and retightening as needed.
In marine and subsea environments, clamp selection becomes even more critical. Technicians must choose clamps based on material compatibility, size, and pressure rating. High torque clamps, especially those registered with Lloyd’s Register, offer added assurance for marine applications. Regular maintenance and prompt replacement of damaged clamps help prevent leaks and maintain system integrity, even in corrosive and dynamic conditions.
Tip: Tagging critical clamps for prioritized inspection can help maintenance teams focus on high-risk connections and prevent unexpected failures.
Manufacturers often select ASTM A276 316 stainless steel for tube clamp fittings due to its outstanding corrosion resistance and mechanical strength. This material meets strict industry standards, making it suitable for demanding marine and industrial environments. The following table summarizes key properties and specifications:
| Parameter | Specification |
|---|---|
| Grade | Stainless Steel 316L |
| Sizes | 3mm to 50mm (1/8" to 2") |
| Standards | ASTM A276, ASTM A479, DIN 1.4401/1.4404, BS970 316-S31/S11 |
| Pressure Ratings | 3000 psi, 6000 psi, 10000 psi (varies by configuration) |
| Thread Types | BSPT, NPT, BSPP |
| End Connections | Welding, Threaded, JIC |
| Applications | Marine, Oil & Gas, Chemical Processing, Instrumentation, HVAC |
ASTM A276 316 stainless steel offers high resistance to seawater, brine, acids, and alkalis. Its corrosion resistant properties make it superior to grade 304, especially in chloride-rich environments. The material maintains its strength and integrity under high pressure and temperature, supporting safe operation in marine engineering, offshore platforms, and chemical processing plants. With a tensile strength of approximately 75,000 psi and excellent weldability, this alloy ensures that tube clamp fittings remain reliable and durable over long service periods.
Note: Regular inspection and maintenance, combined with the use of ASTM A276 316 stainless steel, help extend the lifespan of tube clamp fittings and reduce the risk of corrosion-related failures.
Selecting the right stainless steel pipe fittings depends on the specific requirements of marine and industrial environments. Each fitting type offers unique advantages for different applications. Engineers often choose buttweld fittings for high-pressure industrial systems because welded joints provide strength and leak resistance. Forged fittings deliver durability and withstand high-pressure conditions, making them suitable for critical process lines.
Flanges connect pipes to equipment, allowing for easy maintenance and inspection. Nipples and adapters modify or extend piping systems, supporting flexibility in design. Bends create gradual directional changes, which help reduce pressure loss and turbulence.
Different grades of stainless steel pipe fittings serve various applications. Grade 304 works well for general-purpose use, such as food, beverage, and water treatment. Grade 316, with enhanced corrosion resistance, is the preferred choice for marine and chemical processing. Grades 321 and 347 handle high-temperature industrial applications, while grade 310 resists extreme heat in furnaces and kilns. Grade 904L, a super austenitic alloy, performs in aggressive corrosion environments like seawater.
Marine systems rely on grade 316 and 904L stainless steel pipe fittings for their ability to resist corrosion from saltwater. Industrial facilities select grades based on temperature, corrosion, and strength requirements.
The following table summarizes the main pros and cons of the top 10 stainless steel pipe fittings, highlighting their suitability for different applications and suppliers’ strengths:
| Fitting Type / Supplier | Main Pros | Main Cons | Typical Applications |
|---|---|---|---|
| Elbows (McMaster-Carr) | Corrosion resistant; Durable | Higher cost; Special tools needed | Marine piping, chemical plants |
| Tees (Grainger) | Long lifespan; High strength | Costlier than plastic; Needs specialized fittings | Water treatment, HVAC |
| Reducers (Raykam Alloys LLP) | High quality; Customizable | Higher cost; Availability varies | Oil & gas, process industries |
| Flanges (Ferguson) | Corrosion resistance; Durability | Higher cost; Special tools needed | Shipbuilding, power plants |
| Caps (Quality Pipe Products) | Wide variety; Immediate delivery | Limited to 304 & 316; Higher cost | System isolation, maintenance |
| Adapters (PipingNow) | Durable; Wide application range | Higher cost; Needs specific tools | System upgrades, retrofits |
| Unions (Allied Stainless) | Extensive inventory; Diverse alloys | Limited to certain manufacturers; Higher cost for special alloys | Maintenance, quick assembly |
| Compression Fittings (American Piping Products) | Diverse inventory; Customer-focused | Limited technical details; Few application examples | Instrumentation, hydraulics |
| Hydraulic Fittings (U.S. Metals) | Experienced staff; Specialty alloys | Creep cracking risk; Complex procurement | Marine hydraulics, industrial automation |
| Tube Clamps (R&M Forge) | On-time delivery; Competitive prices | Limited product info; No detailed pricing | Vibration control, marine systems |
Stainless steel pipe fittings offer unmatched corrosion resistance, strength, and longevity. However, they often cost more than plastic alternatives and may require specialized installation tools. Suppliers differentiate themselves through inventory, customization, and technical support. Engineers should match fitting types and grades to the intended applications of tube fittings to ensure system safety and performance.
Tip: Always consider both the technical requirements and supplier capabilities when selecting stainless steel pipe fittings for marine or industrial projects.
Selecting the right stainless steel pipe fittings starts with understanding the specific requirements of each application. Engineers must consider the type of fluid or gas, the operating pressure, and the temperature range. Different systems, such as marine, chemical processing, or industrial piping applications, demand unique solutions. For example, high-performance fittings are essential in high-pressure hydraulic systems, while sanitary fittings are critical in food and pharmaceutical production.
Key factors for application needs include:
The type of fluid or gas being transported
Required flow rates and pressure levels
Space constraints and installation environment
Maintenance and accessibility requirements
Compliance with industry standards and certifications
Various fitting types, such as elbows, tees, reducers, and unions, serve different purposes. Straight unions connect pipes in a line, while union elbows and tees allow for directional changes or branching. Reducing unions help transition between different pipe sizes. Choosing the correct fitting type ensures reliable performance and system safety. High quality pipe products support long-term durability and reduce the risk of leaks or failures in critical systems.
Tip: Always match fitting types and sizes to the specific needs of your systems to achieve optimal performance and safety.
Material compatibility plays a crucial role in the longevity and performance of stainless steel pipe fittings. The choice of material must account for corrosion resistance, chemical exposure, and thermal expansion. In marine applications, 316 stainless steel and super duplex alloys offer superior protection against saltwater and harsh chemicals. For less aggressive environments, 304 stainless steel may provide a cost-effective solution.
The table below highlights how different stainless steel grades perform in various environments:
| Stainless Steel Grade | Key Properties | Corrosion Resistance | Typical Applications |
|---|---|---|---|
| Austenitic (304, 316) | High ductility, formability | Excellent, especially 316 in chlorides | Food, chemical, marine |
| Ferritic | Magnetic, moderate strength | Good, less than austenitic | Automotive, appliances |
| Martensitic | High hardness, strength | Lower | Blades, turbines |
| Duplex | High strength, mixed structure | Superior, harsh environments | Offshore, oil & gas |
Corrosion mechanisms such as galvanic, pitting, and crevice corrosion can cause premature fitting failure. Selecting the right stainless steel grade prevents these issues and ensures high quality and reliable performance. Thermal compatibility also matters, as mismatched materials can lead to seal failure from expansion or contraction.
Note: Always verify material certificates and quality management system certifications to ensure the quality of your stainless steel pipe fittings.
Pressure and environmental factors directly impact the selection of stainless steel pipe fittings. High-pressure systems require fittings with superior strength and toughness. 316 stainless steel is preferred for marine and offshore applications due to its molybdenum content, which enhances resistance to chloride-induced corrosion. Duplex and super duplex grades provide even greater protection in aggressive environments.
When evaluating pressure and environment, consider:
Maximum operating pressure and required safety factors
Temperature extremes and thermal cycling
Exposure to saltwater, chemicals, and abrasive conditions
Vibration, shock loads, and mechanical stresses
Compliance with standards such as SAE J514, ISO 8434, and marine certifications
Stainless steel pipe fittings maintain integrity under high pressures, often rated up to 10,000 psi or more. They offer long service life and require minimal maintenance, even in harsh environments. Advanced coatings and robust designs further enhance corrosion and wear resistance, supporting high-performance applications.
Tip: For marine and industrial piping applications, always select fittings rated for the highest expected pressure and environmental challenges to ensure reliable performance and system safety.
Choosing the right stainless steel tube fittings manufacturer shapes the reliability and safety of marine and industrial systems. A reputable supplier ensures consistent product quality, timely delivery, and strong technical support. Engineers and procurement teams should evaluate several key indicators before making a decision.
Key Indicators of a Reputable Manufacturer:
Industry Reputation & Experience
Established manufacturers with over a decade of experience often demonstrate deep industry knowledge. They specialize in stainless steel tube fittings and showcase their expertise through client lists and successful projects.
Customer Reviews & Testimonials
High ratings on platforms such as Google and Trustpilot reflect customer satisfaction. Positive testimonials and detailed case studies highlight reliability. Consistent complaints or a lack of transparency may signal potential issues.
Certifications & Industry Compliance
Leading suppliers hold certifications like ISO 9001:2015, ASTM, ASME, and PED. These credentials confirm adherence to strict quality standards. Requesting quality control documentation and factory inspection reports helps verify compliance.
Global Reach & Supply Chain Strength
Manufacturers with multiple warehouses and strong shipping partnerships can deliver products quickly. Their expertise in customs and logistics ensures stock availability and timely delivery, even for international projects.
Customer Support & Responsiveness
Responsive customer service, with replies within 24-48 hours, supports smooth transactions. Technical assistance for product selection and clear return or warranty policies contribute to post-sale satisfaction.
Tip: Strong post-sale support and warranty coverage protect buyers from defects and ensure long-term satisfaction.
In addition to these core factors, buyers should consider a manufacturer’s commitment to sustainability. Companies that implement eco-friendly manufacturing, recycling, and energy efficiency practices demonstrate responsibility and align with modern environmental standards.
A reputable supplier also offers a wide selection of stainless steel grades. For marine and industrial sectors, the ability to choose from grades like 304, 316, or duplex 2205 allows engineers to match fittings to specific corrosion resistance and strength requirements.
Checklist for Selecting a Manufacturer:
Does the supplier have recognized certifications and documented quality control?
Are customer reviews and testimonials consistently positive?
Can the company provide technical support and fast response times?
Does the manufacturer offer a broad range of stainless steel grades?
Are sustainability and environmental practices in place?
Selecting a trusted manufacturer, such as XTD Stainless, ensures access to high-quality tube fittings, expert guidance, and reliable after-sales support. This careful approach helps maintain system integrity and safety in demanding marine and industrial environments.
Selecting the right stainless steel tube fittings protects marine and industrial systems from failure. High quality 316/316L stainless steel fittings deliver superior corrosion resistance and long-term value. Trusted manufacturers help ensure quality and reliability in all systems.
Marine operations depend on robust fittings for safe, efficient systems.
Regular reviews and upgrades improve system performance and reduce risks.
Quality fittings keep marine and industrial systems operating at peak efficiency.
316/316L stainless steel contains molybdenum, which increases resistance to saltwater corrosion. This property makes it the preferred choice for marine environments. Engineers trust these grades for their durability and long service life in harsh conditions.
Engineers check the system’s maximum pressure rating and choose fittings tested for those conditions. They also verify material compatibility and ensure the fitting meets industry standards. Proper selection prevents leaks and system failures.
Yes. 316/316L stainless steel tube fittings withstand temperatures from -198°C to 648°C. This range covers most marine and industrial applications. The material maintains strength and resists deformation under both hot and cold conditions.
Technicians should inspect tube fittings at least every six months. Regular checks help detect corrosion, leaks, or mechanical wear early. Scheduled maintenance extends the lifespan of the fittings and ensures system safety.
Stainless steel tube fittings work with many pipe materials, including copper and certain plastics. However, engineers must check for galvanic corrosion risks. Using compatible materials and proper installation methods prevents premature failure.
A reputable manufacturer holds certifications such as ISO 9001:2015, ASTM, and ASME. These credentials show compliance with strict quality standards. Buyers should always request documentation before purchasing.
Most stainless steel tube fittings need standard wrenches or torque tools. Some high-pressure or specialty fittings may require specific tools. Following manufacturer guidelines ensures a secure and leak-free connection.
Trusted suppliers provide consistent quality, technical support, and reliable delivery. They help engineers select the right products and offer after-sales service. Working with reputable sources reduces risks and ensures system reliability.
