304/316
XTD
Grade | UNS | C Content | Ti Content | Mo Content | Key Feature |
---|---|---|---|---|---|
316 | S31600 | ≤0.08 | - | 2.00–3.00 | Standard corrosion resistance |
316L | S31603 | ≤0.035 | - | 2.00–3.00 | Low-carbon for improved weldability |
316H | S31609 | 0.04–0.10 | - | 2.00–3.00 | High-temperature strength |
316Ti | S31635 | ≤0.08 | 5×(C%+N)–0.7 | 2.00–3.00 | Titanium-stabilized for carbide resistance |
316N | S31651 | ≤0.08 | - | 2.00–3.00 | Nitrogen-strengthened for higher strength |
316LN | S31653 | ≤0.035 | - | 2.00–2.50 | Low-carbon + nitrogen for corrosion resistance |
Grade | Tensile Strength | Yield Strength | Elongation | Hardness (HRB) | Application Focus |
---|---|---|---|---|---|
316 | ≥75 ksi (515 MPa) | ≥30 ksi (205 MPa) | ≥35% | ≤95 | General corrosion resistance |
316L | ≥70 ksi (485 MPa) | ≥25 ksi (170 MPa) | ≥35% | ≤95 | Welded structures |
316H | ≥75 ksi (515 MPa) | ≥30 ksi (205 MPa) | ≥35% | ≤95 | High-temperature pressure parts |
316Ti | ≥75 ksi (515 MPa) | ≥30 ksi (205 MPa) | ≥35% | ≤95 | Welded components in corrosive environments |
316N | ≥80 ksi (550 MPa) | ≥35 ksi (240 MPa) | ≥35% | ≤100 | High-strength applications |
316LN | ≥75 ksi (515 MPa) | ≥30 ksi (205 MPa) | ≥35% | ≤95 | Chloride-resistant structures |
Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | N | Ti |
---|---|---|---|---|---|---|---|---|---|---|---|
316Ti | S31635 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.00–18.00 | 10.00–14.00 | 2.00–3.00 | ≤0.10 | 5×(C%+N)–0.7 |
Grade | UNS | Tensile Strength (ksi/MPa) | Yield Strength (ksi/MPa) | Elongation (%) | Hardness (HRB) |
---|---|---|---|---|---|
316Ti | S31635 | ≥75/515 | ≥30/205 | ≥35 | ≤95 |
Property | Value |
---|---|
Density | 7.98 g/cm³ |
Melting Point | 1375–1450°C |
Thermal Conductivity | 16.3 W/m·K (100°C) |
Electrical Resistivity | 74.0 μΩ·cm |
Thermal Expansion | 16.0 μm/m·°C (20–100°C) |
Elastic Modulus | 193 GPa |

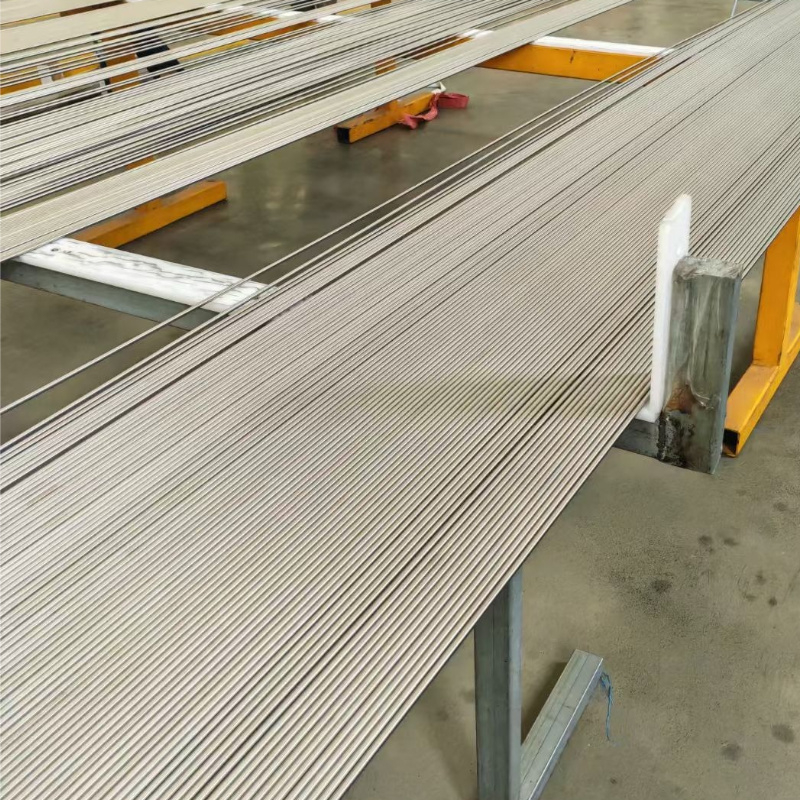

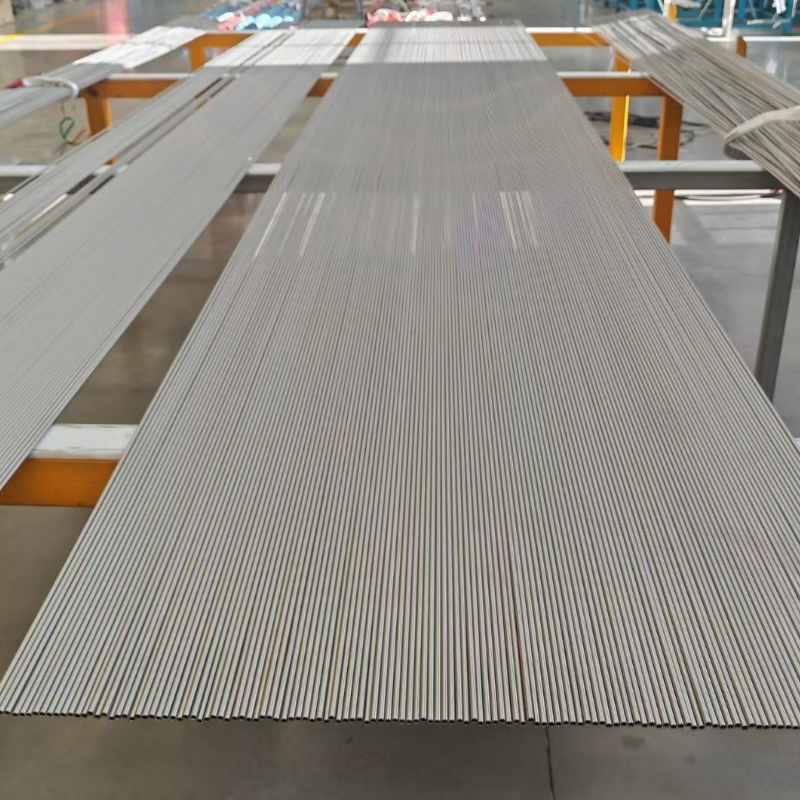

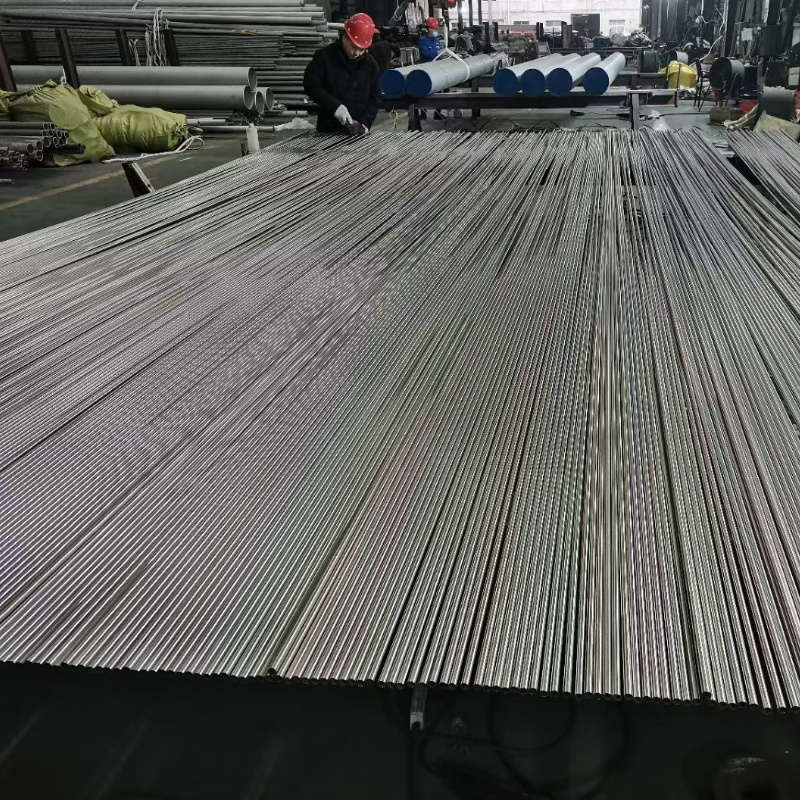

Outer Diameter: 6–1016 mm
Wall Thickness: 1–65 mm
Custom lengths available upon request
Chloride Environments: Resists pitting and crevice corrosion in chloride-rich media, though not recommended for hot seawater applications.
Chemical Media: Performs well in acids, alkalis, and salt solutions, outperforming 304 stainless steel in corrosive conditions.
Welded Structures: Titanium addition minimizes carbide precipitation in heat-affected zones (HAZs), maintaining corrosion resistance post-welding—unlike 316, which may require post-weld annealing.
Withstands continuous service up to 870°C, demonstrating good oxidation resistance—comparable to 316H but with better weldability.
Retains mechanical strength at elevated temperatures, making it suitable for furnace components where 316L may lose stability.
Readily weldable by TIG, MIG, and stick welding methods without specialized preheating—outperforming 316H, which requires careful heat control.
Reduced need for post-weld heat treatment due to titanium stabilization, lowering fabrication costs compared to non-stabilized alloys like 316.
Balances high tensile strength (≥515 MPa) with excellent ductility (≥35% elongation), enabling complex forming—similar to 316 but with improved thermal stability.
Maintains toughness across a wide temperature range, from ambient to high-service conditions, unlike 316L, which has lower tensile strength.
Corrosive Fluid Handling: Piping for acids, alkalis, and salt solutions in chemical plants—preferred over 316 for welded systems.
Reactors & Heat Exchangers: Components exposed to aggressive media, where titanium stabilization prevents weld decay (unlike 316).
Hygienic Systems: Tubing for drug manufacturing and food processing, meeting strict cleanliness standards—similar to 316L but with better high-temperature resistance.
Sterilization Equipment: Pipes and vessels resistant to corrosion from cleaning agents, outperforming 304 in durability.
Refinery Equipment: Process lines, valves, and heat exchangers in oil refining—chosen over 316 for its resistance to sulfur compounds.
Offshore Applications: Corrosion-resistant components for marine-based operations, where 316Ti’s chloride resistance exceeds 304.
Chemical Pulping: Pipes for conveying pulping chemicals—more durable than 316 in acidic conditions.
Bleaching Processes: Equipment exposed to chlorine-based agents, outperforming 316L in long-term use.
